Speaker-Instrument Panel-Right

Component ID: 330

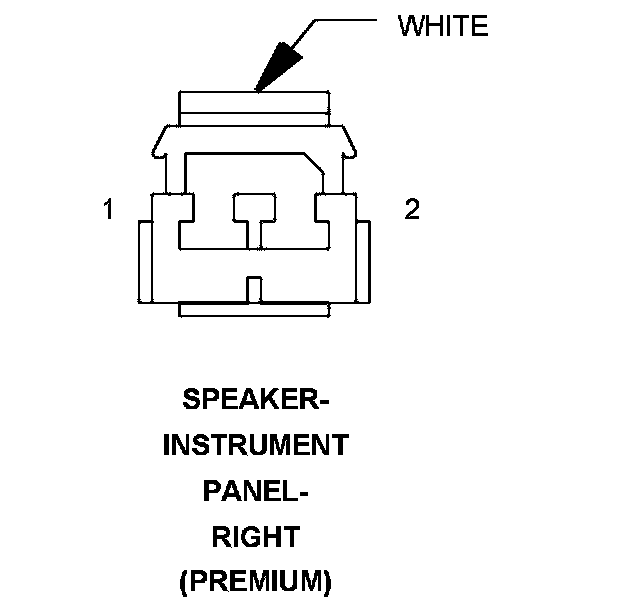

Component : SPEAKER-INSTRUMENT PANEL-RIGHT

Connector:
Name : SPEAKER-INSTRUMENT PANEL-RIGHT
Color : WHITE
# of pins : 2
Qualifier : (PREMIUM)




Pin Description Circuit
1 RIGHT INSTRUMENT PANEL SPEAKER (+) X208 18GY/DG
2 RIGHT INSTRUMENT PANEL SPEAKER (-) X298 18GY/LG

Component Location - 23

Fig. 23:

Component Location - 25




Component Location - 29

Fig. 29:

Component Location - 30




Component Location - 32
