Speaker-Instrument Panel-Left

Component ID: 329
Component : SPEAKER-INSTRUMENT PANEL-LEFT

Connector:

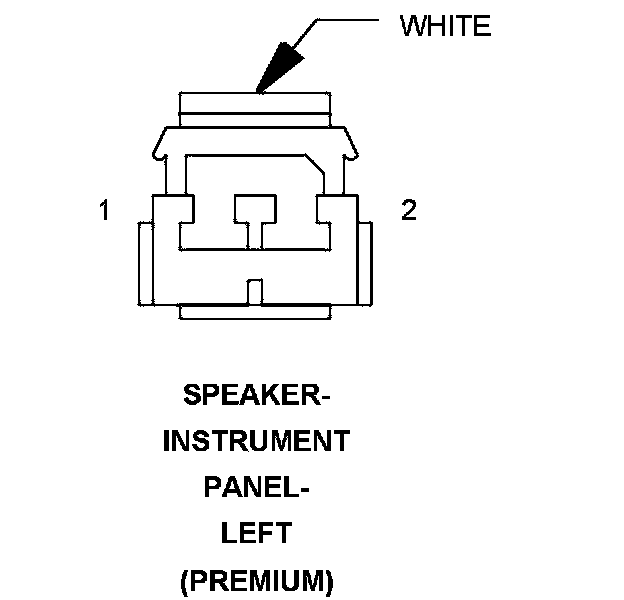

Name : SPEAKER-INSTRUMENT PANEL-LEFT
Color : WHITE
# of pins : 2
Qualifier : (PREMIUM)




Pin Description Circuit
1 LEFT INSTRUMENT PANEL SPEAKER (+) X209 18GY/TN
2 LEFT INSTRUMENT PANEL SPEAKER (-) X299 18GY/BR

Component Location - 23

Fig. 23:

Component Location - 24




Component Location - 29

Fig. 29:

Component Location - 31




Component Location - 33

Fig. 33:
