Module-Electronic Overhead

Component ID: 148
Component : MODULE-ELECTRONIC OVERHEAD

Connector:

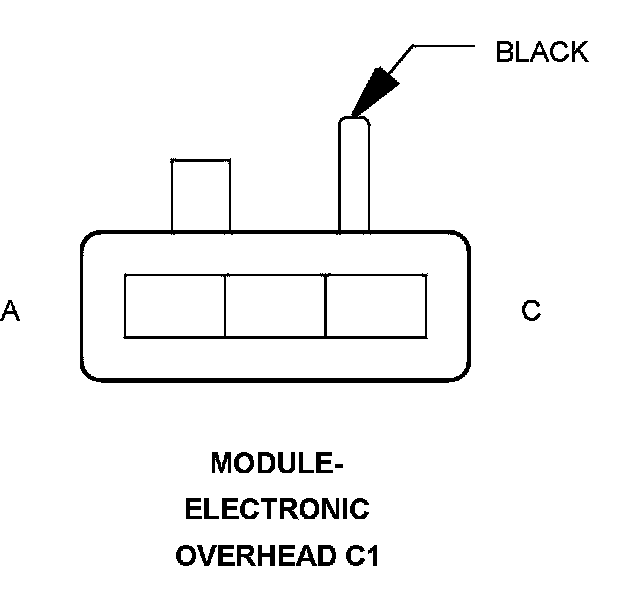

Name : MODULE-ELECTRONIC OVERHEAD C1
Color : BLACK
# of pins : 3




A READING/RAIL LAMPS DRIVER M27 20YL/LB
B GROUND Z936 20BK/LB
C COURTESY LAMPS DRIVER M24 20YL/WT

Component Location - 43






Connector:

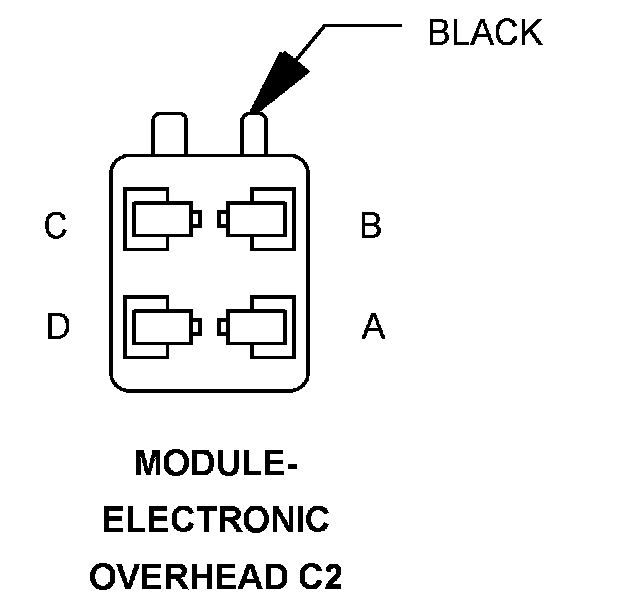

Name : MODULE-ELECTRONIC OVERHEAD C2
Color : BLACK
# of pins : 4




A SUNROOF VENT SWITCH SENSE Q4 20OR/YL
B SUNROOF SWITCH SUPPLY Q6 20OR/LG
C SUNROOF OPEN SWITCH SENSE Q3 20OR/TN
D SUNROOF CLOSE SWITCH SENSE Q5 20OR/LB

Component Location - 43
