Main Relay (Computer/Fuel System)

Component ID: 182

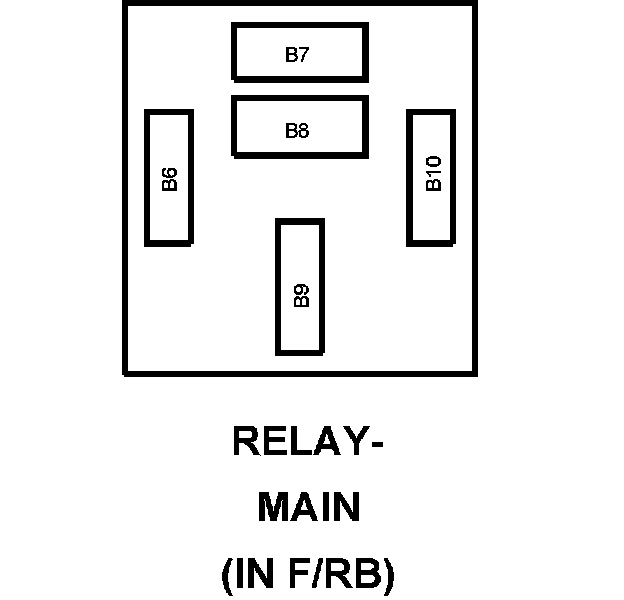

Component : RELAY-MAIN

Connector:
Name : RELAY-MAIN
Color :
# of pins : 0




B6 FUSED B(+) A14 12RD/YL
B7 MAIN RELAY OUTPUT K542 12BR/WT
B8 - -
B9 FUSED B(+) A14 12RD/YL
B10 MAIN RELAY CONTROL K51 20BR/LG
