Capacitor-Ignition

Component ID: 43

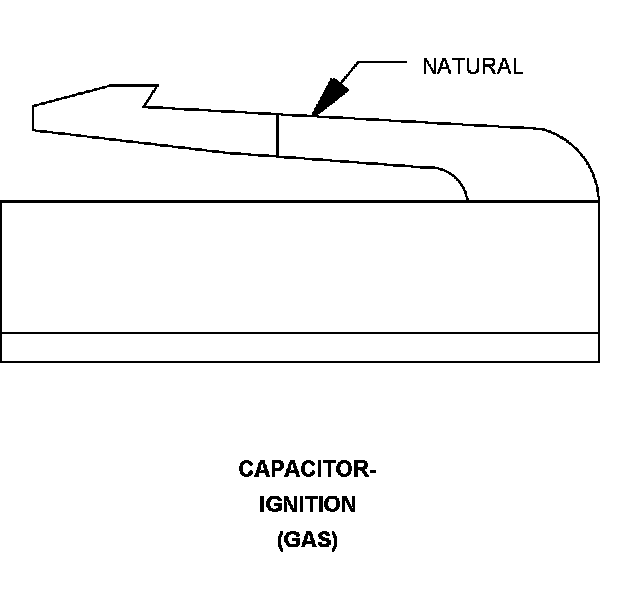

Component : CAPACITOR-IGNITION

Connector:
Name : CAPACITOR-IGNITION
Color : NATURAL
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT K344 16BR/GY

Component Location - 14




Component Location - 16
