Garage Door Opener Transmitter

Component ID: 166

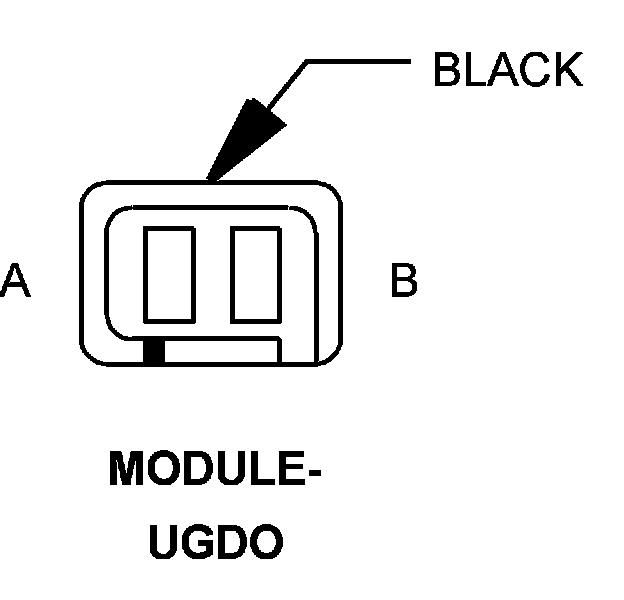

Component : MODULE-UGDO

Connector:
Name : MODULE-UGDO
Color : BLACK
# of pins : 2




A FUSED B(+) (I.O.D.) A417 20RD/DG
B UGDO ENABLE CONTROL CIRCUIT G38 20GY/BK

Component Location - 43
