Compass

Component ID: 147
Component : MODULE-COMPASS

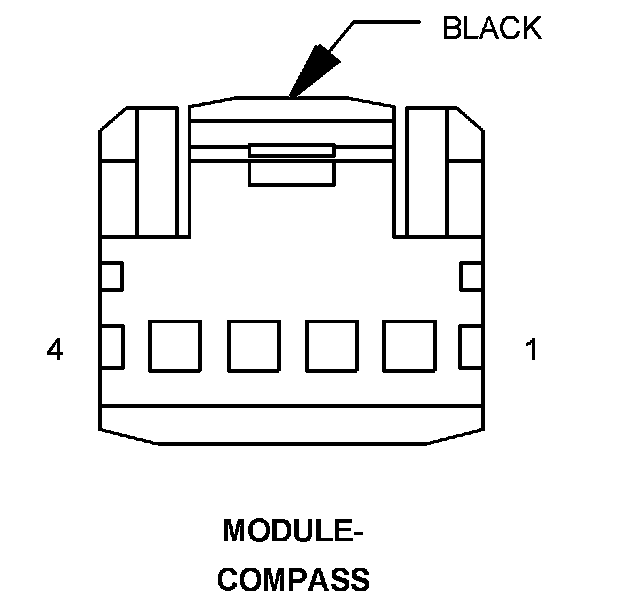

Connector:
Name : MODULE-COMPASS
Color : BLACK
# of pins : 4




Pin Description Circuit
1 - -
2 LIN BUS D506 20WT/DG
3 GROUND Z937 20BK/YL
4 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/RD

Component Location - 29

Fig. 29:

Component Location - 32
