C312

Component ID: 41
Component : C312

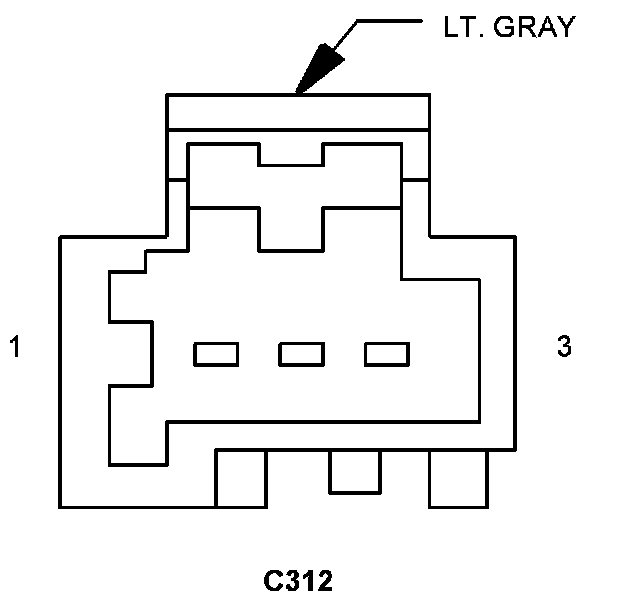

Connector:
Name : C312
Color : LT. GRAY
# of pins : 3
Gender : FEMALE

Pin Description Circuit
1 AUDIO SIGNAL RIGHT (+) X16 20DG/YL
2 AUDIO SIGNAL LEFT (+) X17 20DG/OR
3 AUDIO SIGNAL COMMON X917 20DG

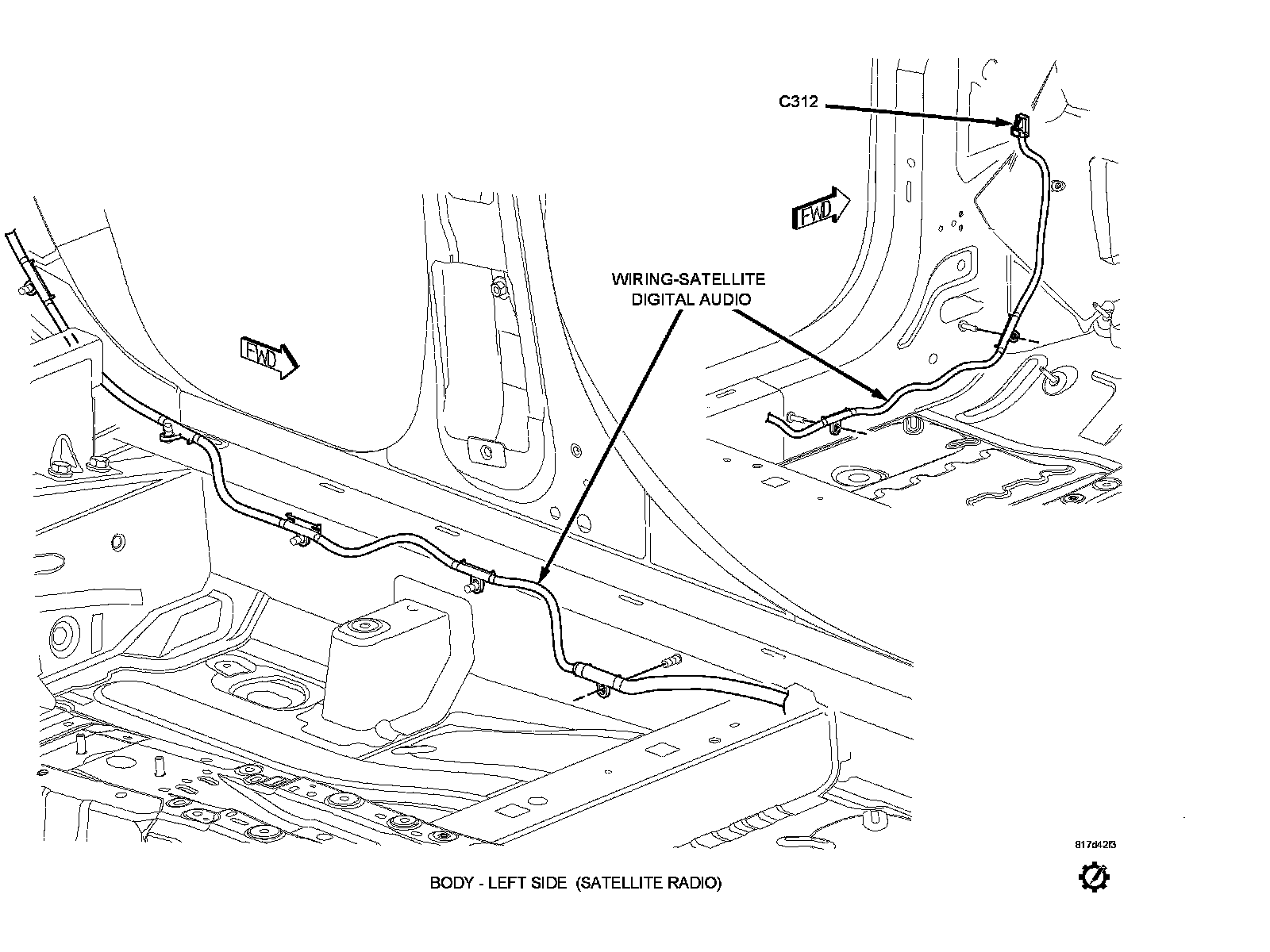

Component Location - 23

Fig. 23:

Component Location - 24

Component Location - 26

Component Location - 37

Fig. 37:

Component Location - 61

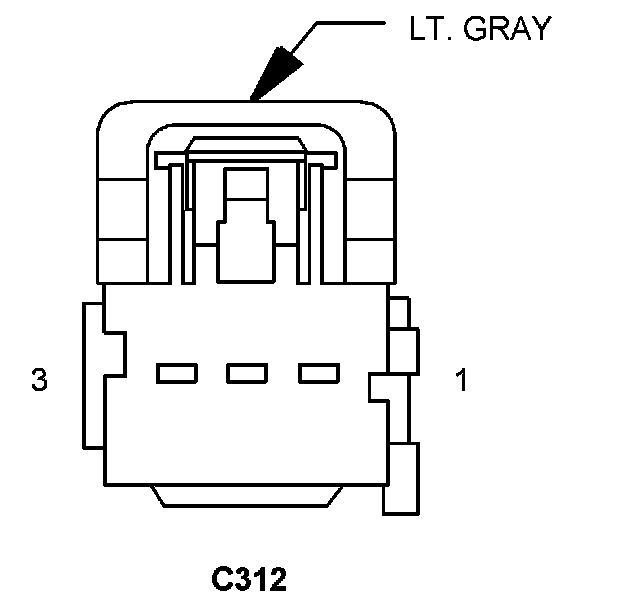

Connector:
Name : C312
Color : LT. GRAY
# of pins : 3
Gender : MALE

Pin Description Circuit
1 AUDIO SIGNAL RIGHT (+) X16 22DG/YL
2 AUDIO SIGNAL LEFT (+) X17 22DG/OR
3 AUDIO SIGNAL COMMON X917 22DG

Component Location - 23
