C310

Component ID: 39
Component : C310

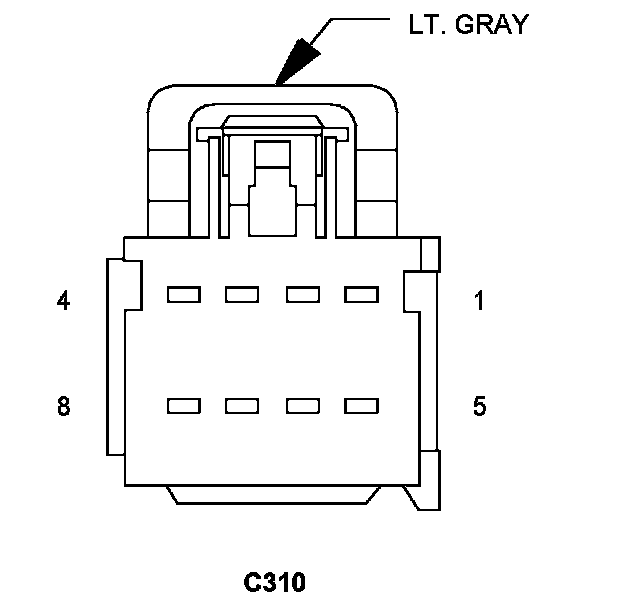

Connector:
Name : C310
Color : LT. GRAY
# of pins : 8
Gender : FEMALE




Pin Description Circuit
1 STOP LAMP SWITCH OUTPUT L53 20DG/WT
2 REAR WIPER MOTOR CONTROL W13 20BR/LG
3 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
4 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 18PK/YL
5 DOOR LOCK DRIVER P33 20LG/TN
6 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
7 - -
8 PARK LAMP CONTROL OUTPUT L217 20WT/VT

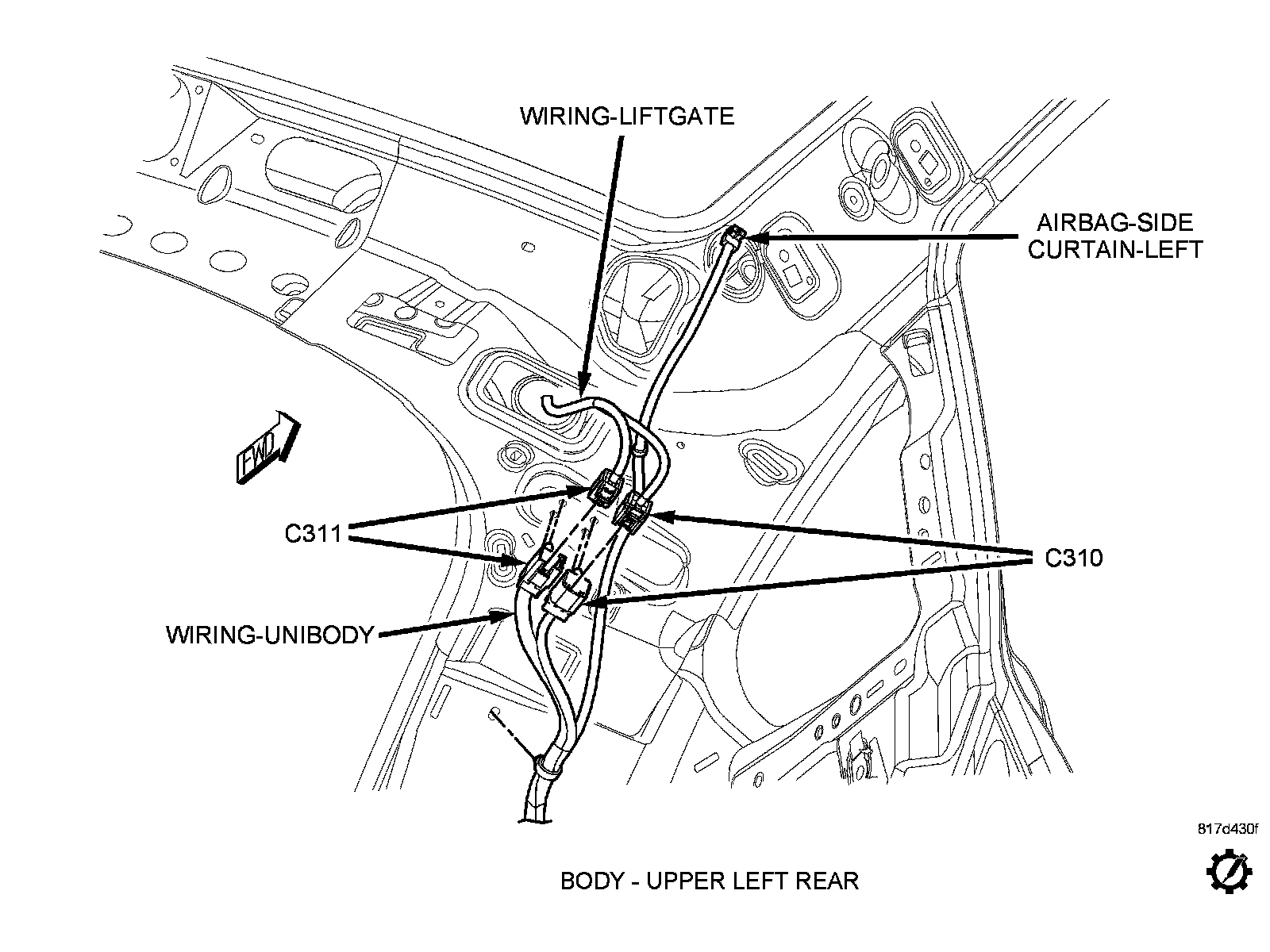

Component Location - 65




Component Location - 67

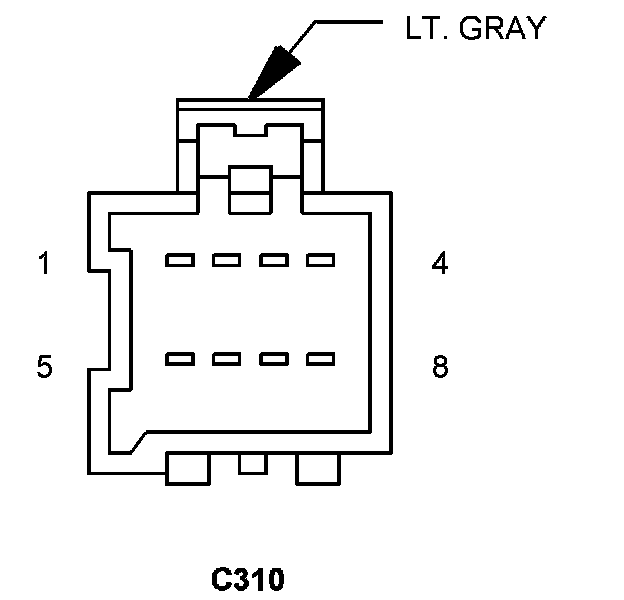

Connector:
Name : C310
Color : LT. GRAY
# of pins : 8
Gender : MALE




Pin Description Circuit
1 STOP LAMP SWITCH OUTPUT L53 20DG/WT
2 REAR WIPER MOTOR CONTROL W13 20BR/LG
3 PASSENGER DOOR UNLOCK DRIVER P240 20LG/YL
3 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
4 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
5 DOOR LOCK DRIVER P33 20TN/DB
6 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
7 - -
8 PARK LAMP CONTROL OUTPUT L217 20WT/VT

Component Location - 65




Component Location - 67
