C305

Component ID: 35
Component : C305

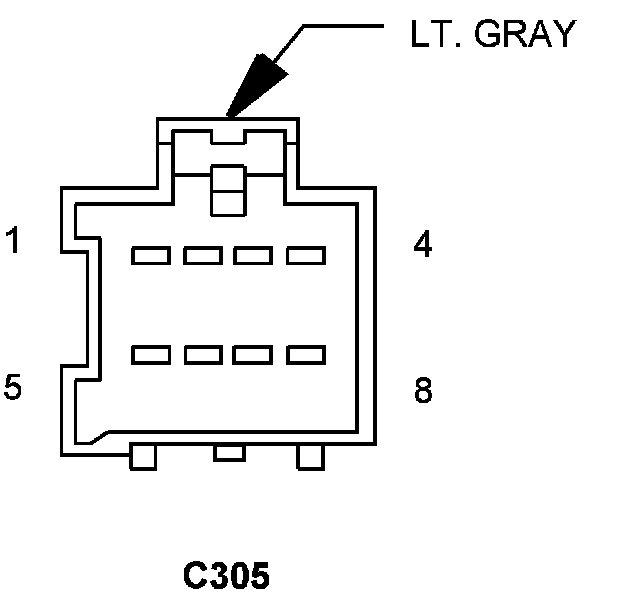

Connector:
Name : C305
Color : LT. GRAY
# of pins : 8
Gender : FEMALE




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR DATA R261 20LB/TN
2 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/BK
3 GROUND Z960 18BK/LB
4 - -
5 LIN BUS D506 20WT/DG
6 FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
7 RIGHT SEAT HEATER B(+) DRIVER P188 20LG/VT
8 - -

Component Location - 48




Component Location - 57

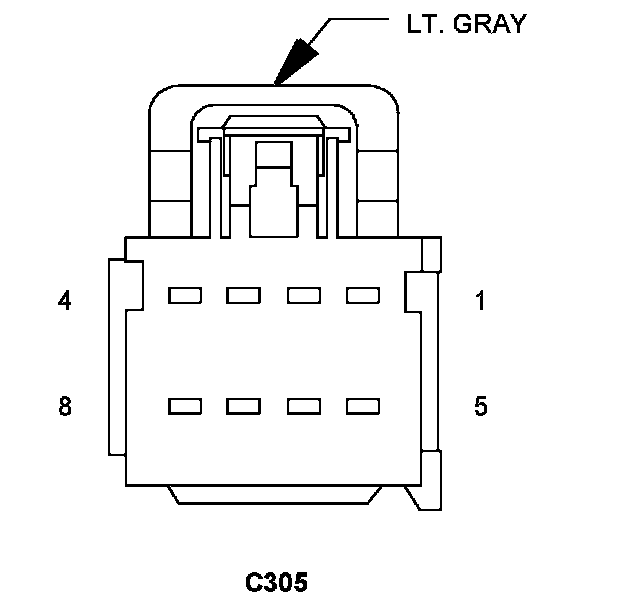

Connector:
Name : C305
Color : LT. GRAY
# of pins : 8
Gender : MALE




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
2 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
3 GROUND Z960 18BK
4 - -
5 LIN BUS D506 20WT/DG
6 FUSED IGNITION SWITCH OUTPUT (RUN) F937 14PK/YL
7 RIGHT SEAT HEATER B(+) DRIVER P188 16LG/VT
7 LEFT SEAT HEATER B(+) DRIVER P187 16LG/VT
8 - -

Component Location - 48




Component Location - 57
