C304

Component ID: 34
Component : C304

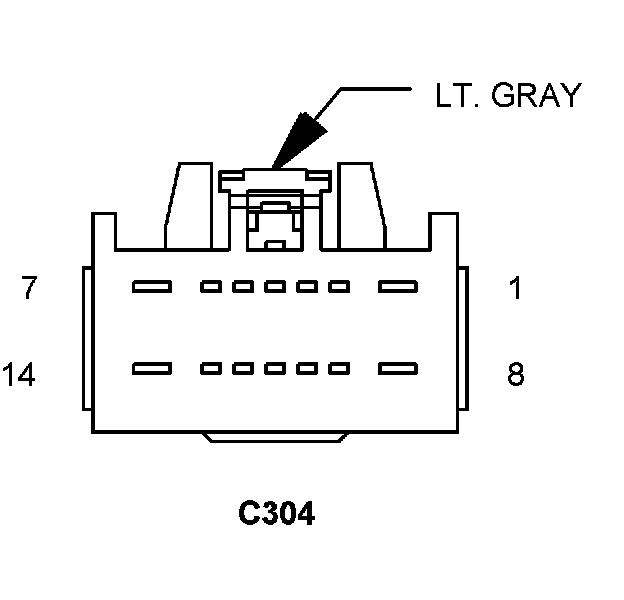

Connector:
Name : C304
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Description Circuit
1 CAN B BUS (-) D54 20WT/PK
2 CAN B BUS (+) D55 20WT/OR
3 DRIVER SEAT POSITION SENSOR DATA R261 20LB/TN
4 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/BK
5 PASSENGER HALL EFFECT (-) R272 20LB/VT
6 PASSENGER HALL EFFECT (+) R274 20LB/WT
7 GROUND Z961 20BK/YL
8 GROUND Z944 20BK/LG
9 - -
10 FUSED B(+) (I.O.D.) A952 20RD/OR
11 RIGHT SEAT HEATER B(+) DRIVER P188 20LG/VT
11 LEFT SEAT HEATER B(+) DRIVER P187 20LG/VT
12 - -
13 - -
14 - -

Component Location - 50




Component Location - 57

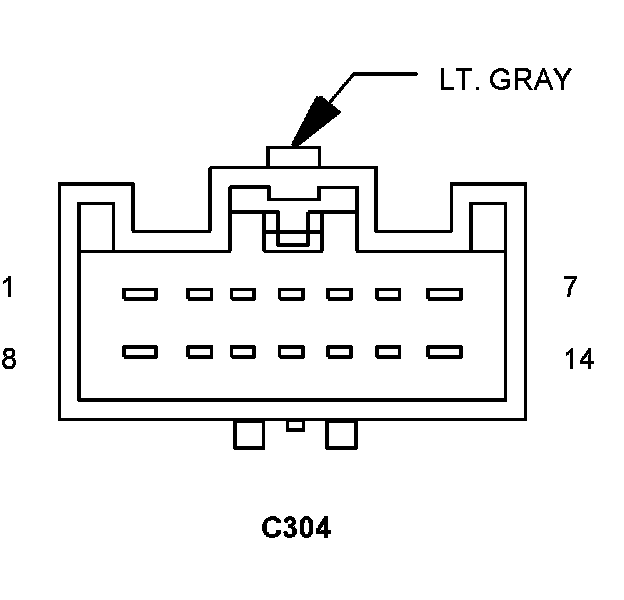

Connector:
Name : C304
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Description Circuit
1 CAN B BUS (-) D54 20WT
2 CAN B BUS (+) D55 20WT/OR
3 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
4 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
5 PASSENGER SEAT POSITION SENSOR DATA R262 20WT/LB
6 PASSENGER SEAT POSITION SENSOR VOLTAGE R264 20VT/LB
7 GROUND Z940 18BK
8 GROUND Z944 20BK
9 - -
10 FUSED B(+) (I.O.D.) A417 18RD
11 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
11 LEFT SEAT HEATER B(+) DRIVER P187 18LG/VT
12 - -
13 PASSENGER HALL EFFECT (-) R272 20LB/VT
14 PASSENGER HALL EFFECT (+) R274 20LB/WT

Component Location - 50




Component Location - 57
