C204

Component ID: 29
Component : C204

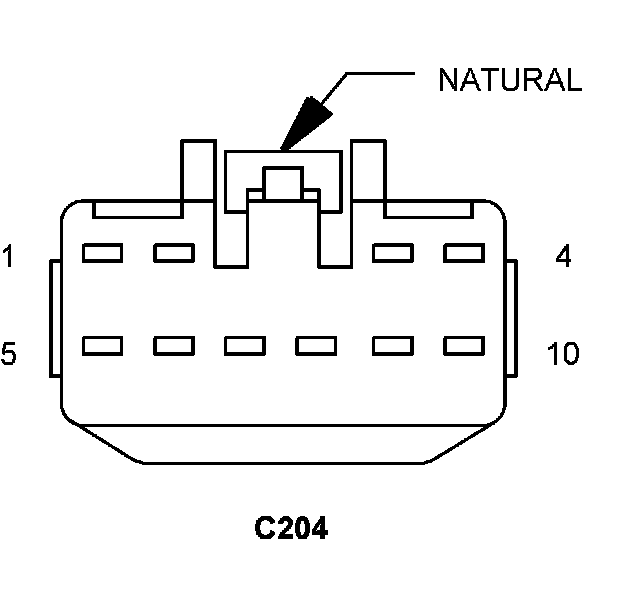

Connector:
Name : C204
Color : NATURAL
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 - -
2 PANEL LAMPS DRIVER E12 20OR/GY
3 GROUND Z937 20BK
4 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 18PK/YL
5 110 VOLT AC LINE 1 P801 18LG
6 INVERTER ENABLE SWITCH SIGNAL P805 18LG/LB
7 110 VOLT AC COMMON P809 18LG/TN
8 - -
9 - -
10 - -

Component Location - 35




Component Location - 40

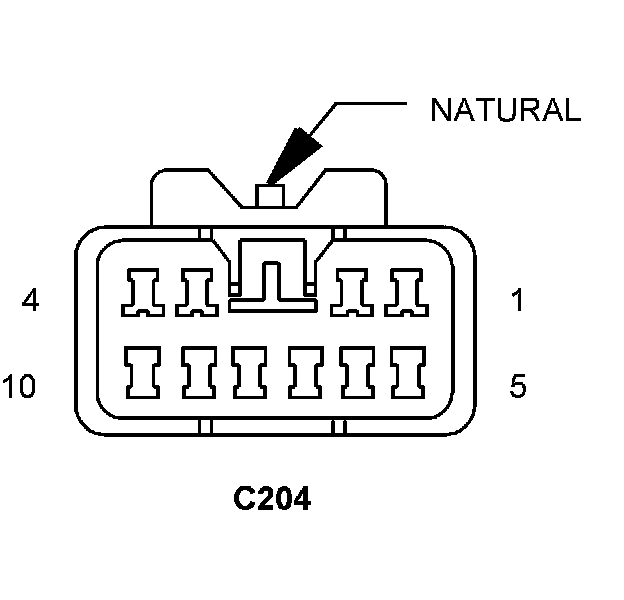

Connector:
Name : C204
Color : NATURAL
# of pins : 10
Gender : MALE




Pin Description Circuit
1 - -
2 PANEL LAMPS DRIVER E12 20OR/GY
3 GROUND Z937 20BK/YL
4 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
5 110 VOLT AC LINE 1 P801 18LG/PK
6 INVERTER ENABLE SWITCH SIGNAL P805 18LG/DB
7 110 VOLT AC COMMON P809 18LG/LB
8 - -
9 - -
10 - -

Component Location - 35




Component Location - 40
