C203

Component ID: 28
Component : C203

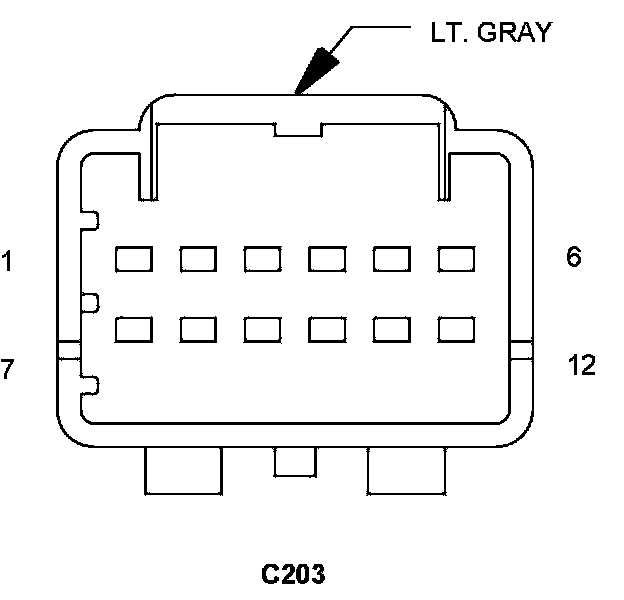

Connector:
Name : C203
Color : LT. GRAY
# of pins : 12
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A927 16RD/GY
2 SUNROOF OPEN SWITCH SENSE Q3 20OR/TN
3 - -
4 - -
5 SUNROOF VENT SWITCH SENSE Q4 20OR/YL
6 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
7 SUNROOF CLOSE SWITCH SENSE Q5 20OR/LB
8 SUNROOF SWITCH SUPPLY Q6 20OR/LG
9 GROUND Z937 16BK/YL
10 - -
11 - -
12 - -

Component Location - 23

Fig. 23:

Component Location - 25




Component Location - 29

Fig. 29:

Component Location - 30




Component Location - 32




Component Location - 41

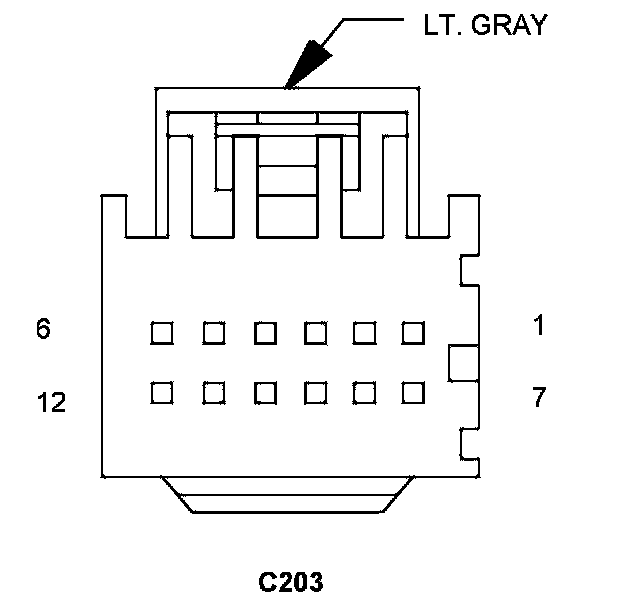

Connector:
Name : C203
Color : LT. GRAY
# of pins : 12
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A927 18RD/GY
2 SUNROOF OPEN SWITCH SENSE Q3 20OR/TN
3 - -
4 - -
5 SUNROOF VENT SWITCH SENSE Q4 20OR/YL
6 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
7 SUNROOF CLOSE SWITCH SENSE Q5 20OR/LB
8 SUNROOF SWITCH SUPPLY Q6 20OR/LG
9 GROUND Z937 18BK/YL
10 - -
11 - -
12 - -

Component Location - 23

Fig. 23:

Component Location - 25




Component Location - 29

Fig. 29:

Component Location - 30




Component Location - 32




Component Location - 41
