C200
Component ID: 25
Component : C200

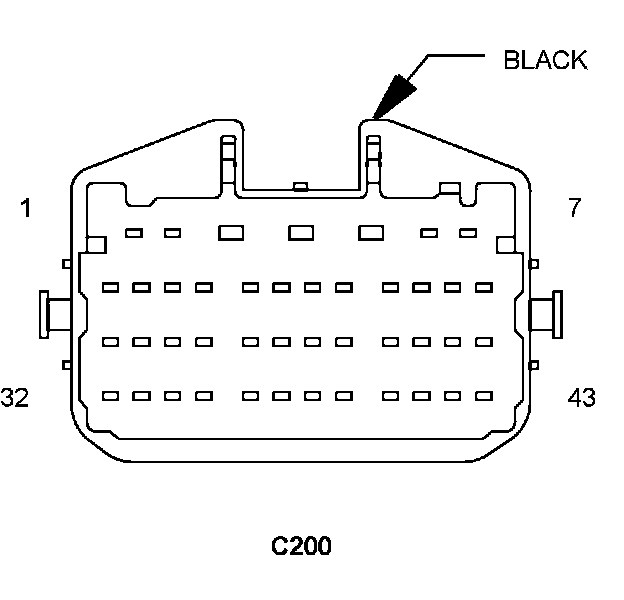

Connector:
Name : C200
Color : BLACK
# of pins : 43
Gender : FEMALE
Pin Description Circuit
1 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
2 SECONDARY LOCK DRIVER P235 20LG/TN
3 SECONDARY UNLOCK DRIVER P237 20DG/TN
4 CAN B BUS (-) D54 20WT/PK
5 CAN B BUS (+) D55 20WT/OR
6 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY
7 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
8 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
9 SIREN SIGNAL CONTROL D96 20WT/BR
10 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/RD
11 DOOR LOCK DRIVER P33 20TN/DB
12 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
13 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F986 20PK/BK
14 POWER ANTENNA SIGNAL X60 20GY/RD
15 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 20VT/WT
16 FUEL LEVEL SIGNAL 1 N4 20DB/WT
17 LEFT FRONT DOOR AJAR SWITCH SENSE G75 20VT/DB
18 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
19 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18LB/DB
20 DRIVER SQUIB 1 LINE 2 R43 18LG/BR
21 - -
22 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
23 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
24 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/GY
25 - -
26 - -
27 STOP LAMP SWITCH OUTPUT L53 20DG/WT
28 FUEL LEVEL SIGNAL 2 N5 20DB/BK
29 - -
30 DOOR LOCK SWITCH MUX P697 20LG/DG
31 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
32 - -
33 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR
34 DRIVER SQUIB 1 LINE 1 R45 18LG/RD
35 DRIVER SEAT BELT SWITCH SENSE R57 20LG/GY
36 - -
37 - -
38 - -
39 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
40 - -
41 LIN BUS D506 20WT/DG
42 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/WT
43 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F985 18PK/YL
Component Location - 23
Fig. 23:
Component Location - 24
Component Location - 26
Component Location - 29
Fig. 29:
Component Location - 31
Component Location - 33
Fig. 33:
Component Location - 37
Fig. 37:
Component Location - 38
Fig. 38:
Component Location - 44
Component Location - 46

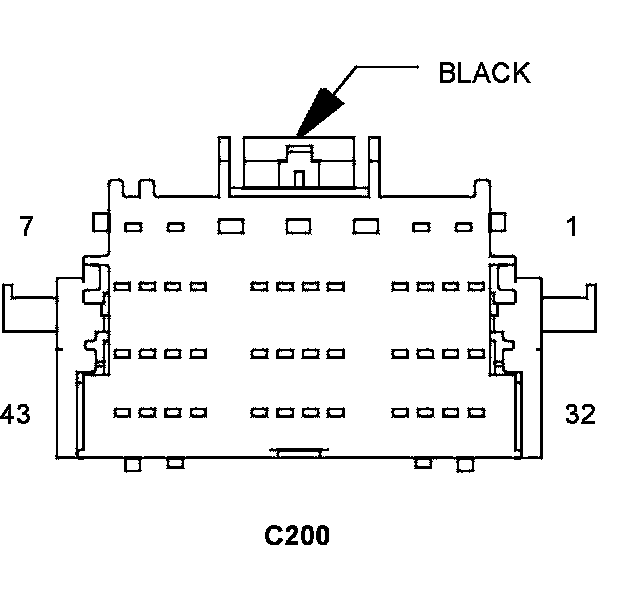

Connector:
Name : C200
Color : BLACK
# of pins : 43
Gender : MALE
Pin Description Circuit
1 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
2 SECONDARY LOCK DRIVER P235 20LG/TN
3 SECONDARY UNLOCK DRIVER P237 20DG/TN
4 CAN B BUS (-) D54 20WT/PK
5 CAN B BUS (+) D55 20WT/OR
6 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY
7 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/YL
8 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
9 SIREN SIGNAL CONTROL D96 20WT/BR
10 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/RD
11 DOOR LOCK DRIVER P33 20TN/DB
12 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
13 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F986 20PK/BK
14 POWER ANTENNA SIGNAL X60 20GY/RD
15 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 20VT/WT
16 FUEL LEVEL SIGNAL 1 N4 20DB/WT
17 LEFT FRONT DOOR AJAR SWITCH SENSE G75 20VT/DB
18 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
19 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18LB/DB
20 DRIVER SQUIB 1 LINE 2 R43 18LG/BR
21 - -
22 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
23 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
24 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/GY
25 - -
26 - -
27 STOP LAMP SWITCH OUTPUT L53 20DG/WT
28 FUEL LEVEL SIGNAL 2 N5 20DB/BK
29 - -
30 DOOR LOCK SWITCH MUX P697 20LG/DG
31 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
32 - -
33 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR
34 DRIVER SQUIB 1 LINE 1 R45 18LG/RD
35 DRIVER SEAT BELT SWITCH SENSE R57 20LG/GY
36 - -
37 - -
38 - -
39 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
40 - -
41 LIN BUS D506 20WT/DG
42 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/WT
43 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F985 18PK/YL
Component Location - 23
Fig. 23:
Component Location - 24
Component Location - 26
Component Location - 29
Fig. 29:
Component Location - 31
Component Location - 33
Fig. 33:
Component Location - 37
Fig. 37:
Component Location - 38
Fig. 38:
Component Location - 44
Component Location - 46
