C106

Component ID: 24
Component : C106

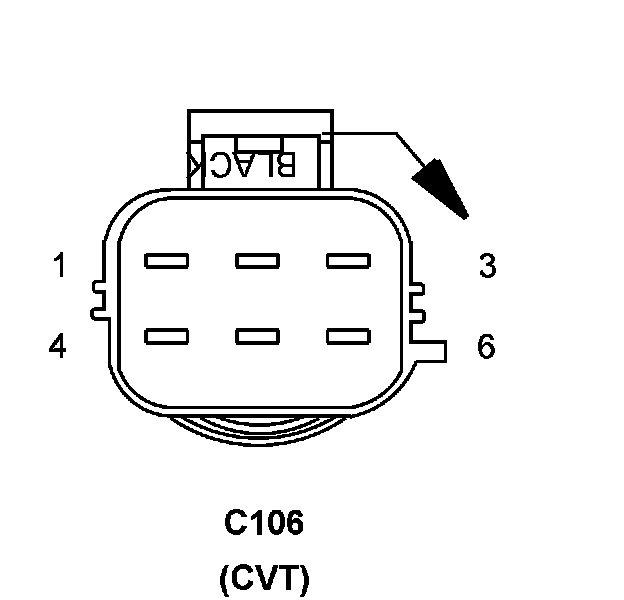

Connector:
Name : C106
Color : BLACK
# of pins : 6
Qualifier : (CVT)
Gender : FEMALE




Pin Description Circuit
1 SENSOR GROUND T13 18DG/TN
2 INPUT SPEED SIGNAL T14 18DG/BK
3 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
4 - -
5 OUTPUT SPEED SIGNAL T52 18DG/WT
6 OUTPUT SPEED SENSOR GROUND T130 18TN/DG

Component Location - 21

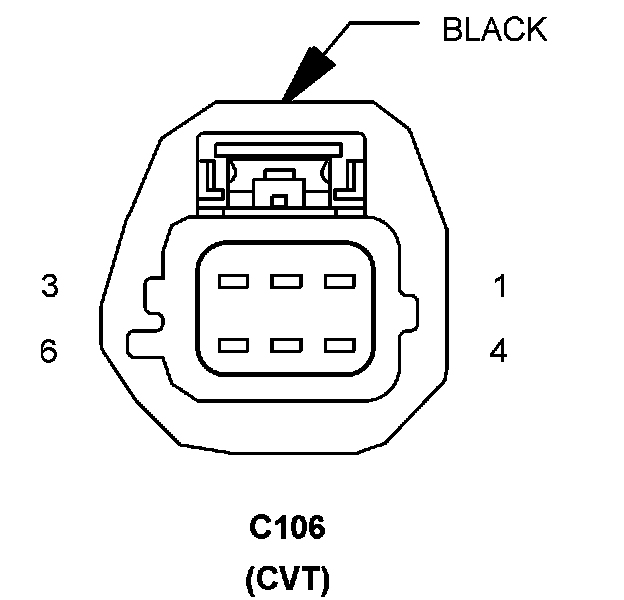

Connector:
Name : C106
Color : BLACK
# of pins : 6
Qualifier : (CVT)
Gender : MALE




Pin Description Circuit
1 SENSOR GROUND T13 18DG/TN
2 INPUT SPEED SIGNAL T14 18DG/BK
3 TRANSMISSION CONTROL OUTPUT T16 18YL/OR
4 - -
5 OUTPUT SPEED SIGNAL T52 18DG/WT
6 OUTPUT SPEED SENSOR GROUND T130 18TN/DG

Component Location - 21
