Blower Motor Resistor

Component ID: 186
Component : RESISTOR-BLOWER MOTOR

Connector:
Name : RESISTOR-BLOWER MOTOR
Color : GRAY
# of pins : 4




Pin Description Circuit
1 BLOWER MOTOR HIGH SPEED C70 12DB/YL
2 FRONT BLOWER M1 SPEED C72 18DB/OR
3 FRONT BLOWER M2 SPEED C73 18DB/VT
4 FRONT BLOWER LOW SPEED C71 18DB/BR

Component Location - 25




Component Location - 27




Component Location - 31




Component Location - 33

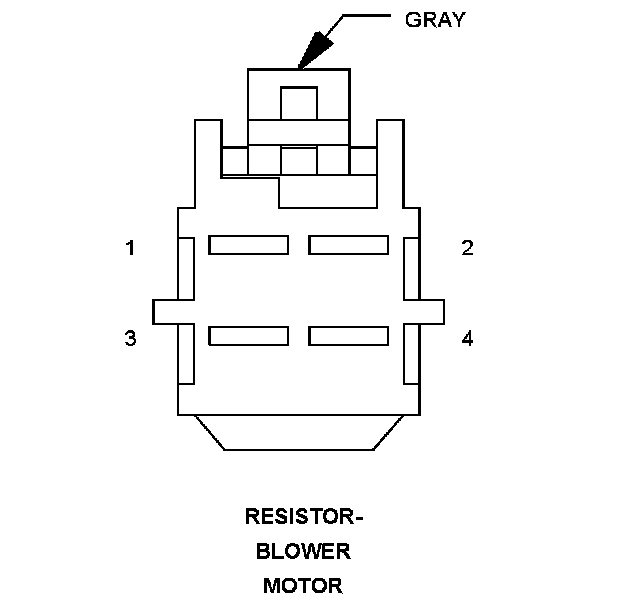

Fig. 33:
