Lamp-Backup-Left

Component ID: 114

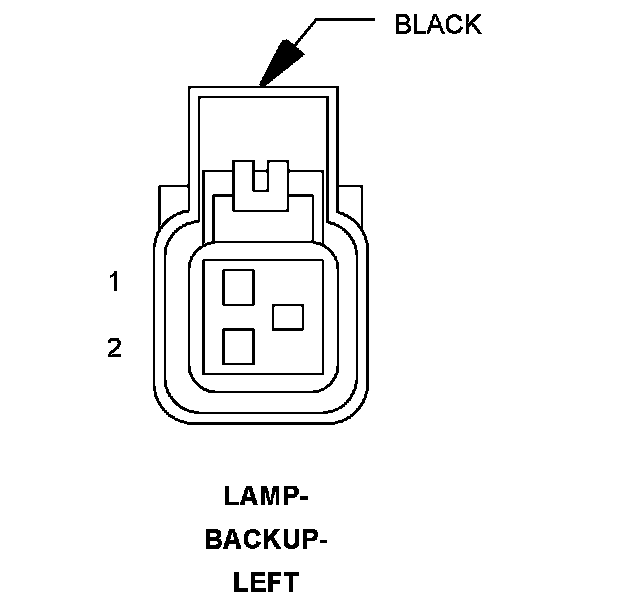

Component : LAMP-BACKUP-LEFT

Connector:
Name : LAMP-BACKUP-LEFT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GROUND Z960 18BK/LB
2 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG

Component Location - 60
