Module-Occupant Restraint Controller
Component ID: 159
Component : MODULE-OCCUPANT RESTRAINT CONTROLLER

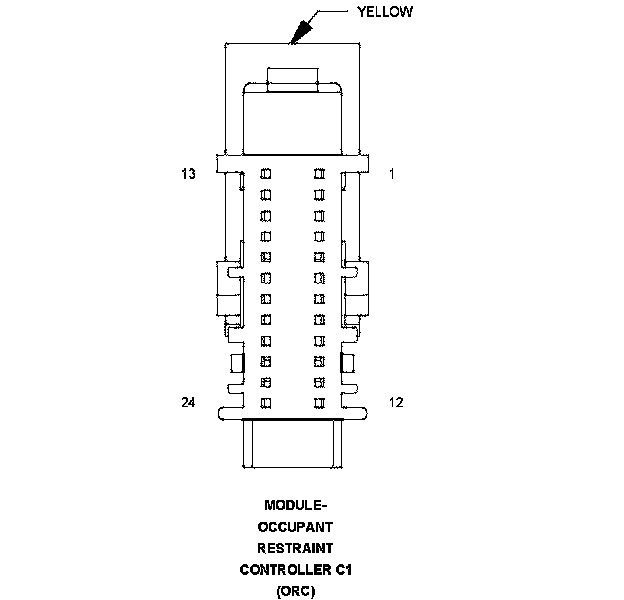

Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C1 (ORC)
Color : YELLOW
# of pins : 24
Pin Description Circuit
1 - -
2 - -
3 CAN B BUS (+) D55 20WT/OR
4 CAN B BUS (-) D54 20WT/PK
5 - -
6 - -
7 - -
8 - -
9 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
10 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
11 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/OR
12 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20VT/LB
13 DRIVER KNEE BLOCKER SQUIB LINE 2 R9 18LB/YL
14 DRIVER KNEE BLOCKER SQUIB LINE 1 R11 18LB/DB
15 - -
16 - -
17 DRIVER SQUIB 1 LINE 2 R43 18LG/BR
18 DRIVER SQUIB 1 LINE 1 R45 18LG/RD
19 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR
20 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
21 DRIVER SQUIB 2 LINE 2 R61 18LG/VT
22 DRIVER SQUIB 2 LINE 1 R63 18LG/BK
23 PASSENGER SQUIB 2 LINE 1 R64 18LB/WT
24 PASSENGER SQUIB 2 LINE 2 R62 18LB/VT

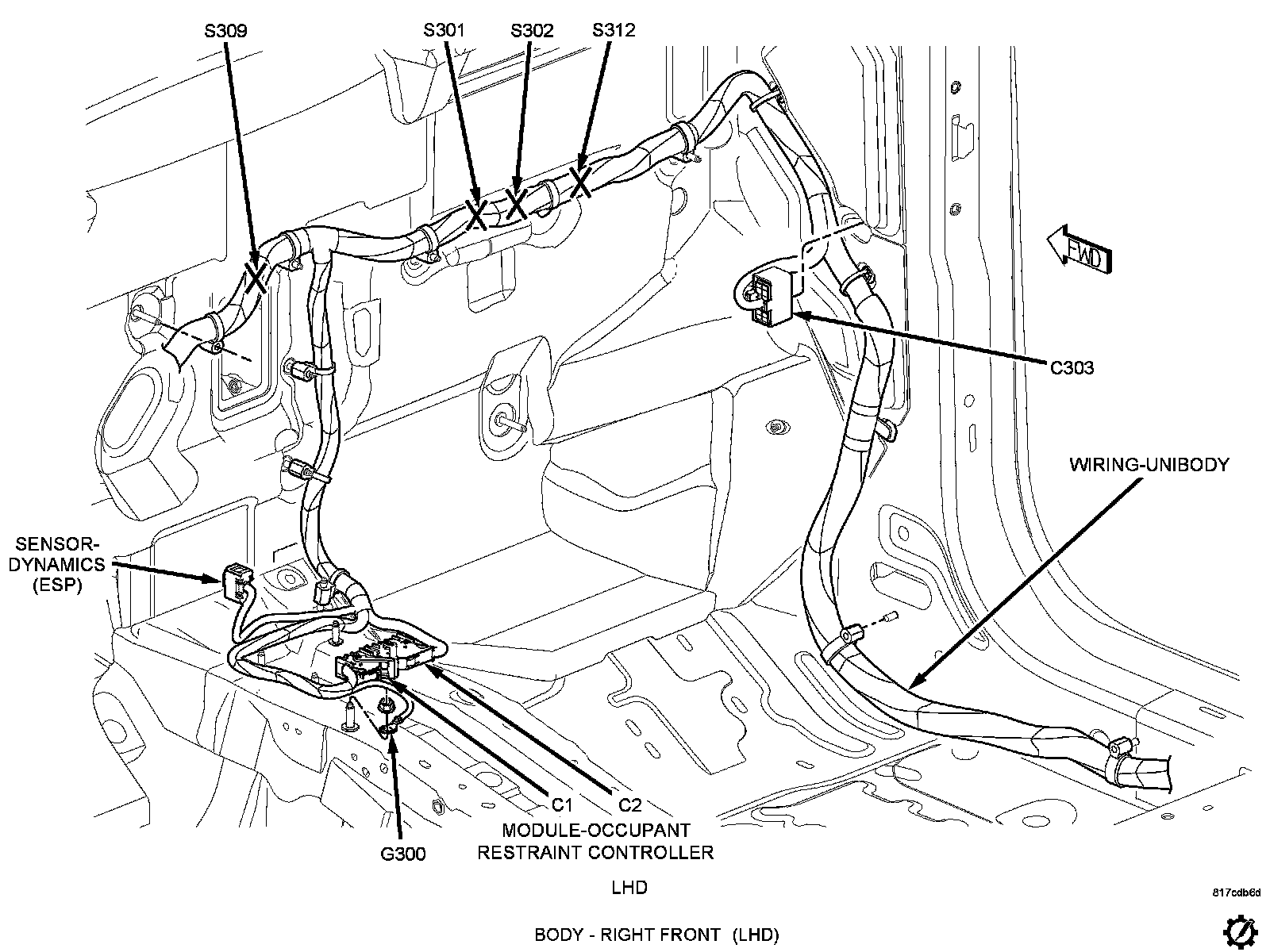

Component Location - 45
Component Location - 46

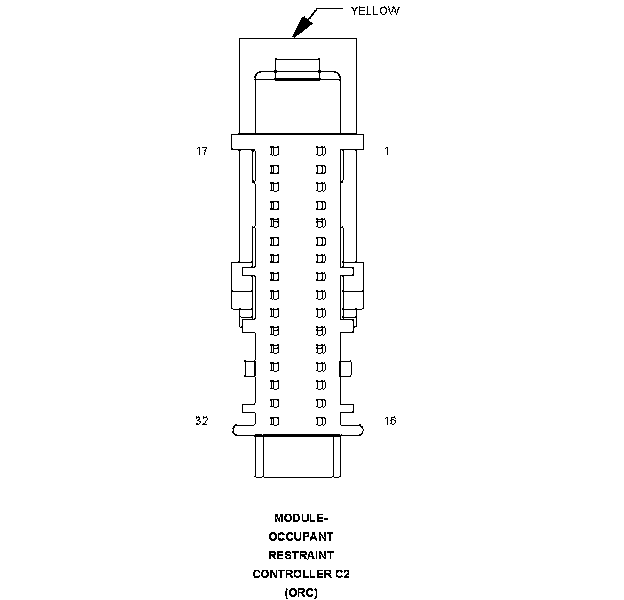

Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C2 (ORC)
Color : YELLOW
# of pins : 32
Pin Description Circuit
1 - -
2 - -
3 - -
4 - -
5 LEFT CURTAIN SQUIB 1 LINE 2 R1 18LB/WT
6 LEFT CURTAIN SQUIB 1 LINE 1 R3 18LB/OR
7 RIGHT CURTAIN SQUIB 1 LINE 1 R4 18OR/LB
8 RIGHT CURTAIN SQUIB 1 LINE 2 R2 18WT/LB
9 DRIVER SEAT BELT TENSIONER LINE 2 R53 18LG/YL
10 DRIVER SEAT BELT TENSIONER LINE 1 R55 18LG/DG
11 PASSENGER SEAT BELT TENSIONER LINE 1 R56 18LB/DG
12 PASSENGER SEAT BELT TENSIONER LINE 2 R54 18LB/YL
13 - -
14 - -
15 - -
16 - -
17 FUSED IGNITION SWITCH OUTPUT (RUN-START) F200 20PK/LB
18 FUSED IGNITION SWITCH OUTPUT (RUN) F100 20DG/YL
19 - -
20 GROUND Z944 18BK/LG
21 PASSENGER HALL EFFECT (-) R272 20LB/VT
22 - -
23 - -
24 PASSENGER HALL EFFECT (+) R274 20LB/WT
25 - -
26 - -
27 RIGHT SIDE IMPACT SENSOR 1 SIGNAL R14 20TN/LG
28 RIGHT SIDE IMPACT SENSOR 1 GROUND R16 20BR/LG
29 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
30 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/TN
31 - -
32 - -
Component Location - 45
Component Location - 46
