Module-Occupant Classification

Component ID: 158
Component : MODULE-OCCUPANT CLASSIFICATION

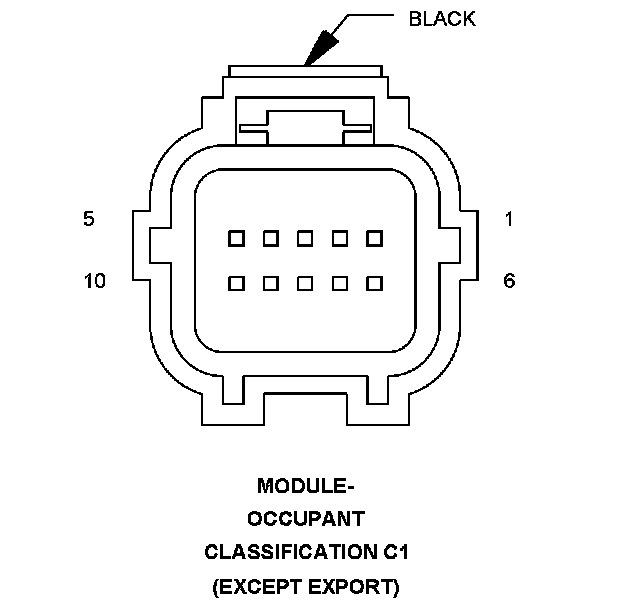

Connector:
Name : MODULE-OCCUPANT CLASSIFICATION C1
Color : BLACK
# of pins : 10
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A417 18RD
2 - -
3 - -
4 CAN B BUS (+) D55 20WT/OR
5 CAN B BUS (-) D54 20WT
6 - -
7 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
8 - -
9 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
10 GROUND Z944 20BK

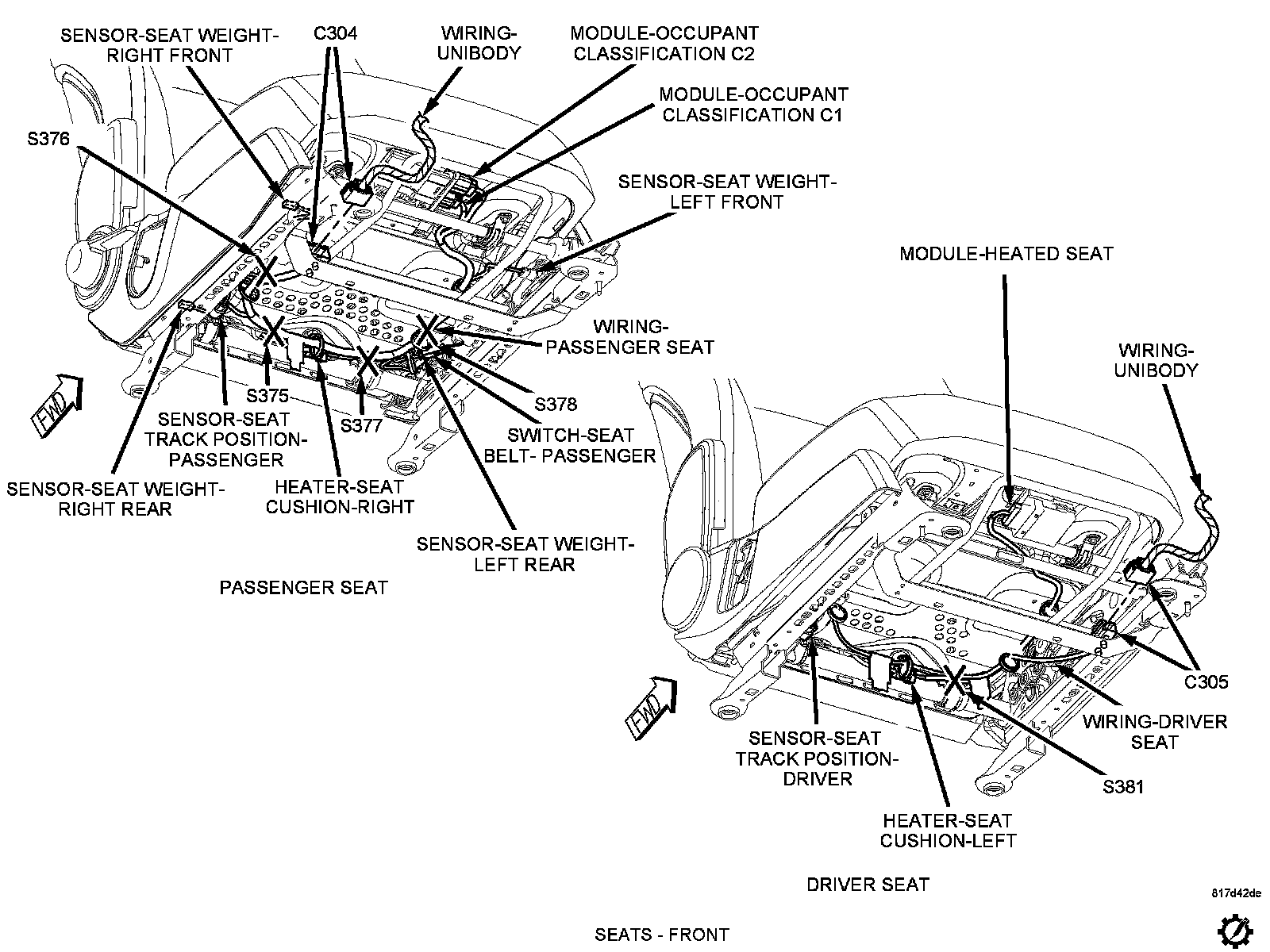

Component Location - 57

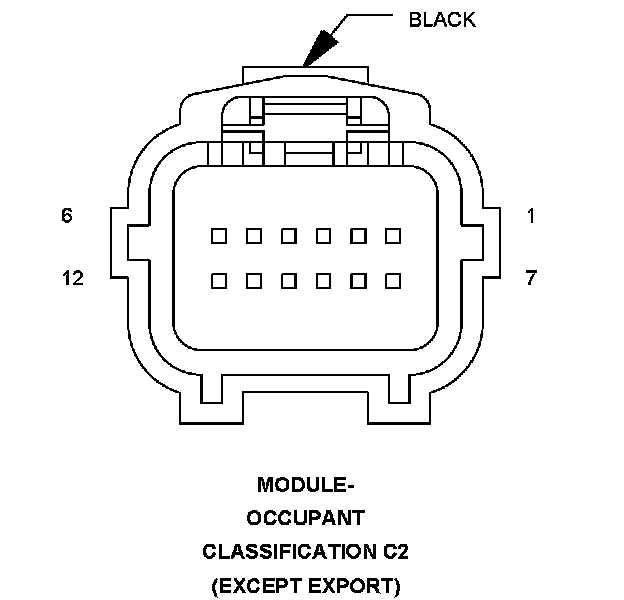

Connector:
Name : MODULE-OCCUPANT CLASSIFICATION C2
Color : BLACK
# of pins : 12
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 SEAT WEIGHT SENSOR 5 VOLT R701 20LG
2 PASSENGER SEAT POSITION SENSOR VOLTAGE R264 20VT/LB
3 SEAT WEIGHT LEFT FRONT SENSOR SIGNAL R717 20LG/DG
4 - -
5 SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL R718 20LB/DG
6 - -
7 SEAT WEIGHT RIGHT REAR SENSOR SIGNAL R706 20LB/OR
8 - -
9 SEAT WEIGHT LEFT REAR SENSOR SIGNAL R705 20LG/OR
10 - -
11 PASSENGER SEAT POSITION SENSOR DATA R262 20WT/LB
12 SEAT WEIGHT SENSOR GROUND R728 20LB/YL

Component Location - 57
