Installation

INSTALLATION

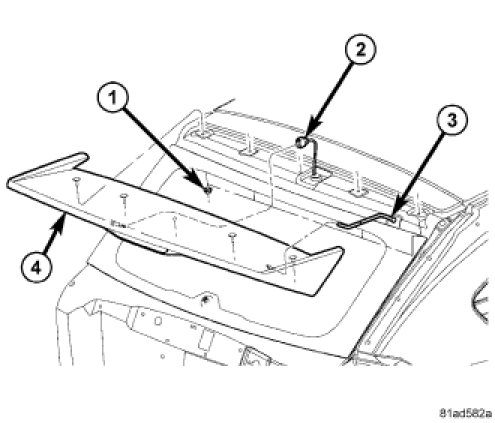

1. Connect the washer hose (3) to the washer nozzle.

2. Connect the electrical connector (2) to the center high mount stop lamp and make sure the harness is install to the clip on the spoiler.


NOTE: Make sure the adhesive patch areas are completely clean prior to installation of the spoiler. Due not touch any part of the adhesive tape once the cover strips has been removed.

3. Remove the adhesive cover strips, install spoiler (4) to the lift gate and press down on the areas of the spoiler that have the adhesive patches installed.

4. Install the nuts (1) to the spoiler studs tighten to 9.5 Nm (85 in. lbs.).

5. Install the body plugs.

6. Install the liftgate upper molding.
