Disassembly

DISASSEMBLY




1. Before proceeding with the following repair procedure, review all warnings and cautions.

2. Remove the seat back.

3. Remove the headrest.





4. Remove the lumbar handle, if equipped.

5. Remove the back panel (1).





6. Separate the J-straps (1) and the push-pin fasteners (2).





7. Release the push-pin fasteners (1) and release the cover from the hooks (2).





8. Separate the seat cover (3) from the foam cushion (1) and cut off all hog rings (2) attaching cover to the foam.

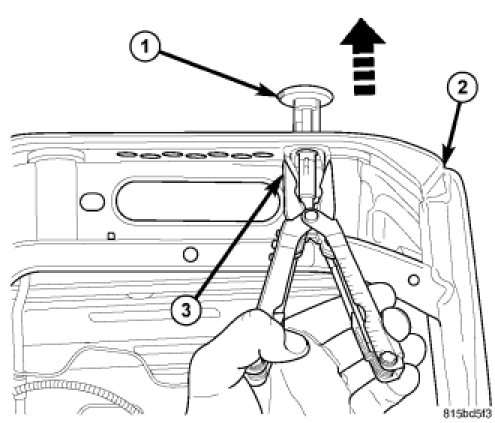

9. Squeeze the locking tab (3) and remove the headrest sleeves (1) and remove the cover.

10. Remove the seat back cover and cushion.





11. Remove the lumbar adjuster screws (1).





12. Disconnect the lumbar cable (2) and separate the cable housing (1).

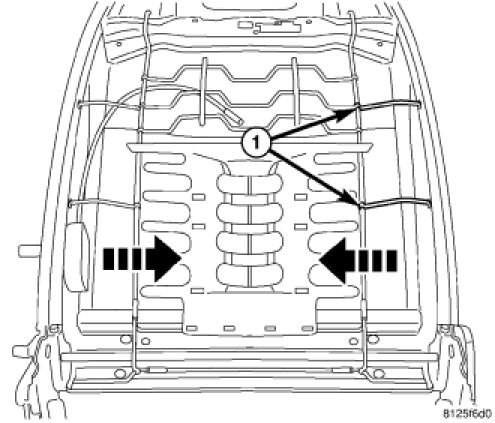

13. Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

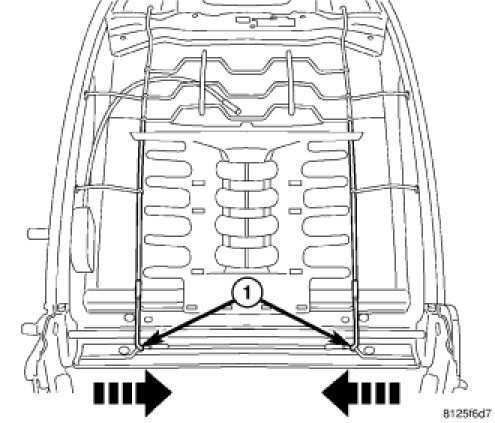

14. Squeeze the lower support wires (1) in and release the lower wires.

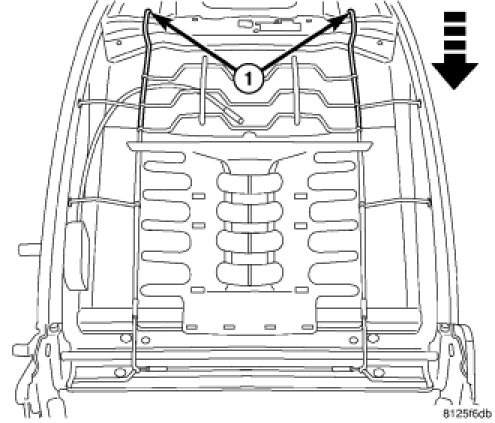

15. Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.

16. Seat mechanical part description and specifications are found in the seat description.
