Heater-Seat Cushion-Right

Component ID: 107
Component : HEATER-SEAT CUSHION-RIGHT

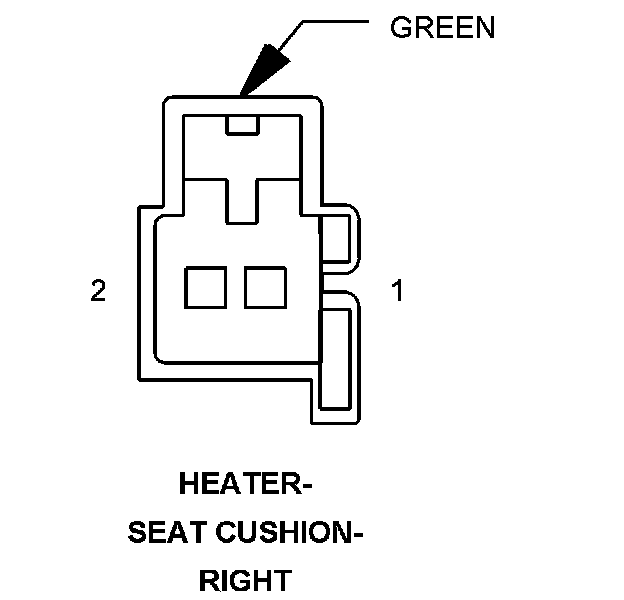

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 16LG/BR
2 GROUND Z940 18BK

Component Location - 57

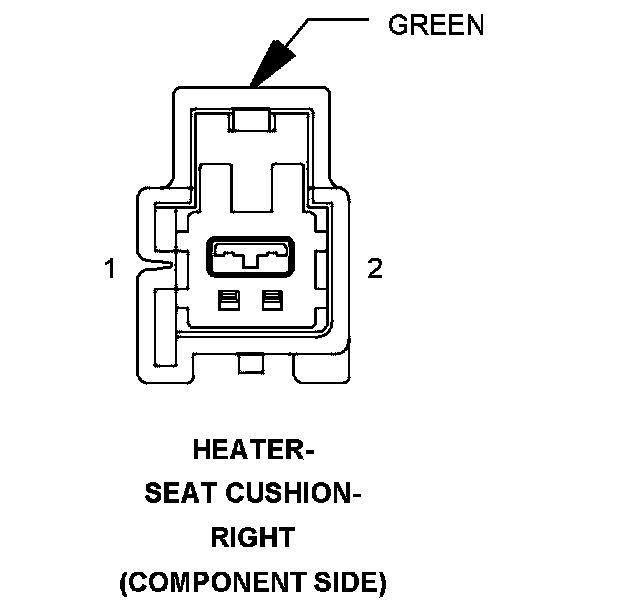

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 18BK
2 GROUND Z940 18BK

Component Location - 57
