Heater-Seat Cushion-Left

Component ID: 106
Component : HEATER-SEAT CUSHION-LEFT

Connector:

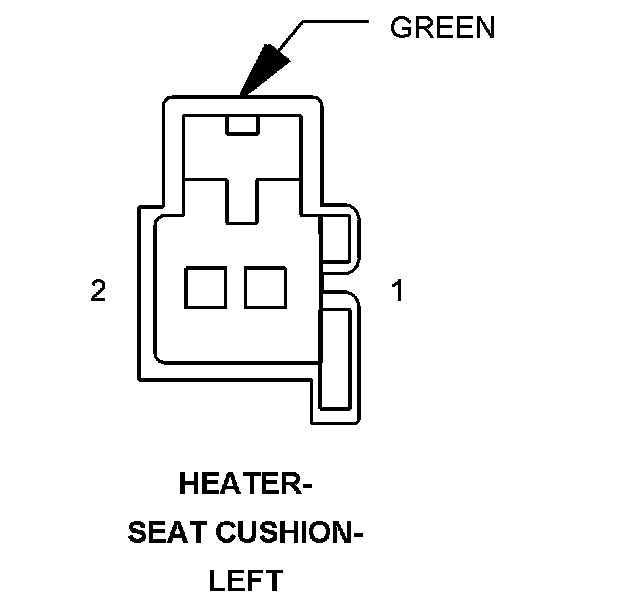

Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 16LG/BR
Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 18LG/VT
2 GROUND Z960 18BK

Component Location - 57






Connector:

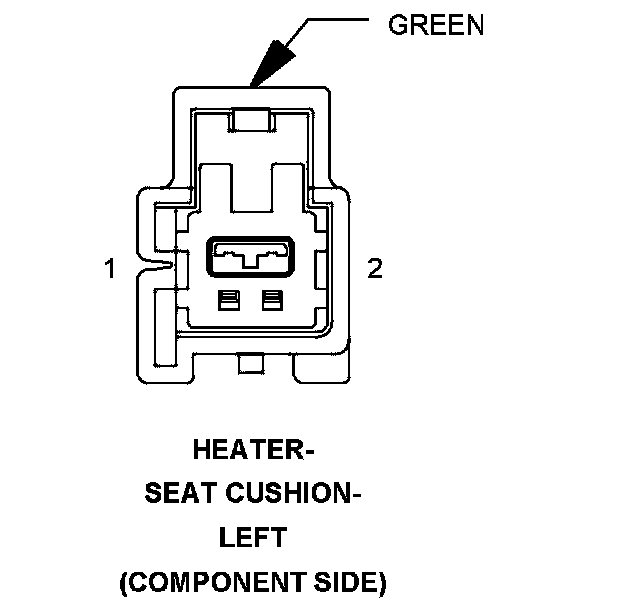

Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 18BK
2 GROUND Z960 18BK

Component Location - 57
