Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> Seat - Front

Seat - Front






DESCRIPTION





2-WAY DRIVER SEAT

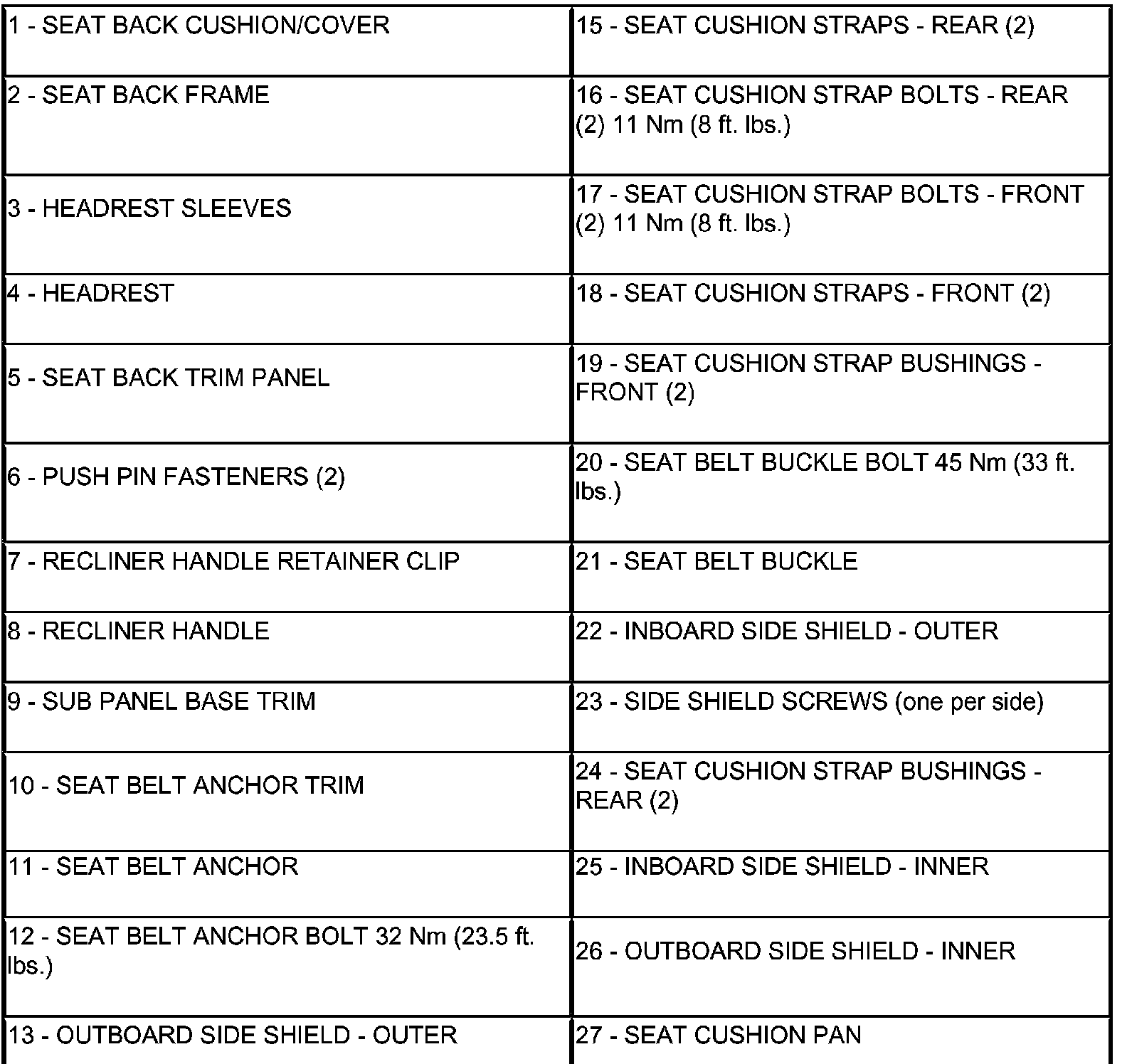

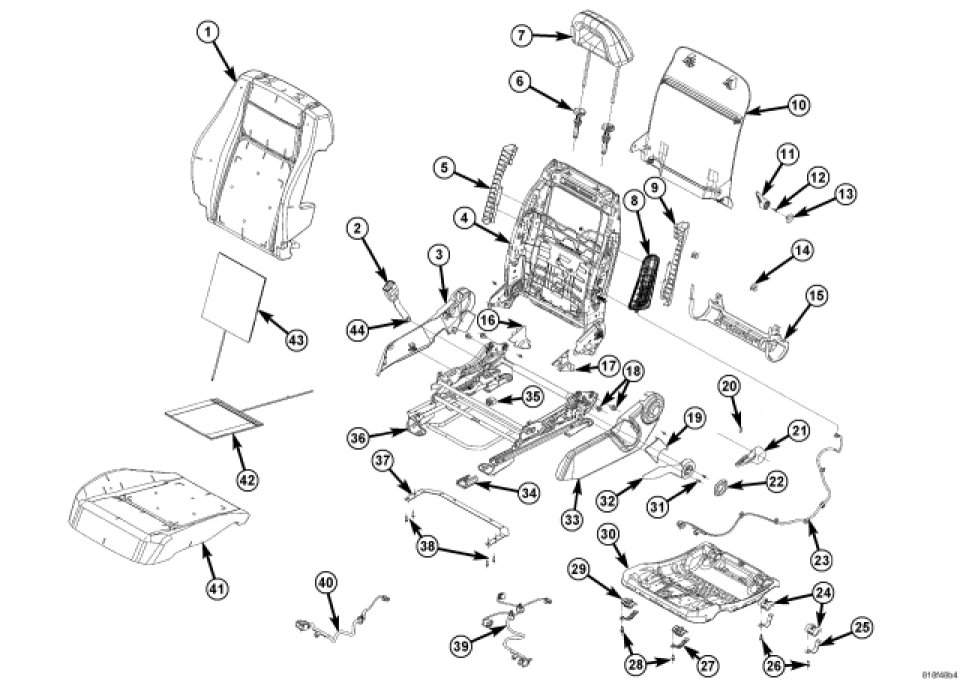

4-WAY DRIVER SEAT















PASSENGER FOLD FLAT SEAT

- -















PASSENGER FOLD FLAT W/AIR BAG



- -

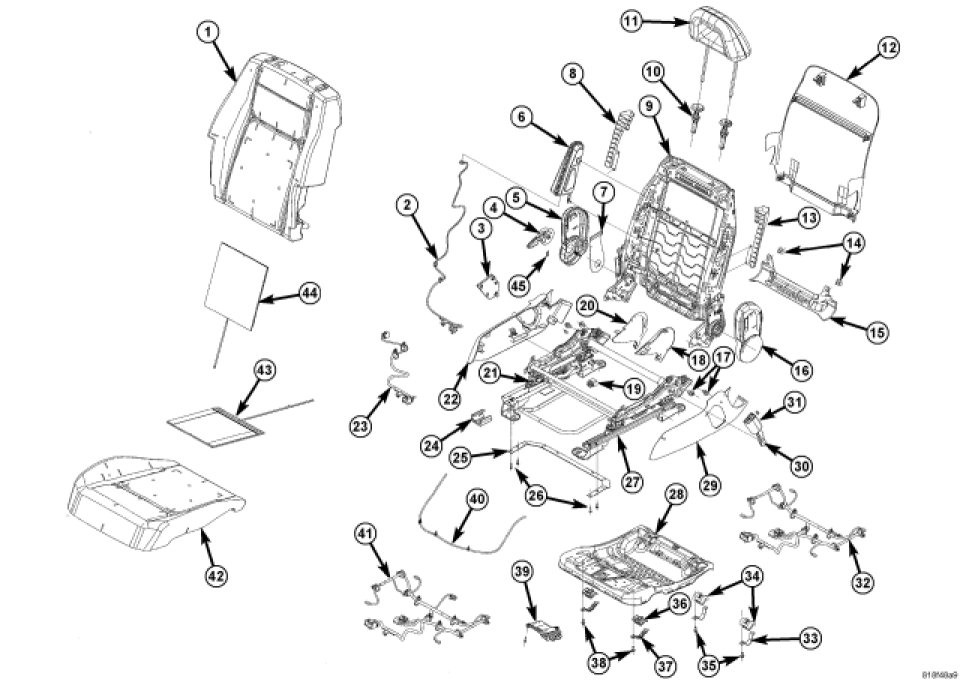

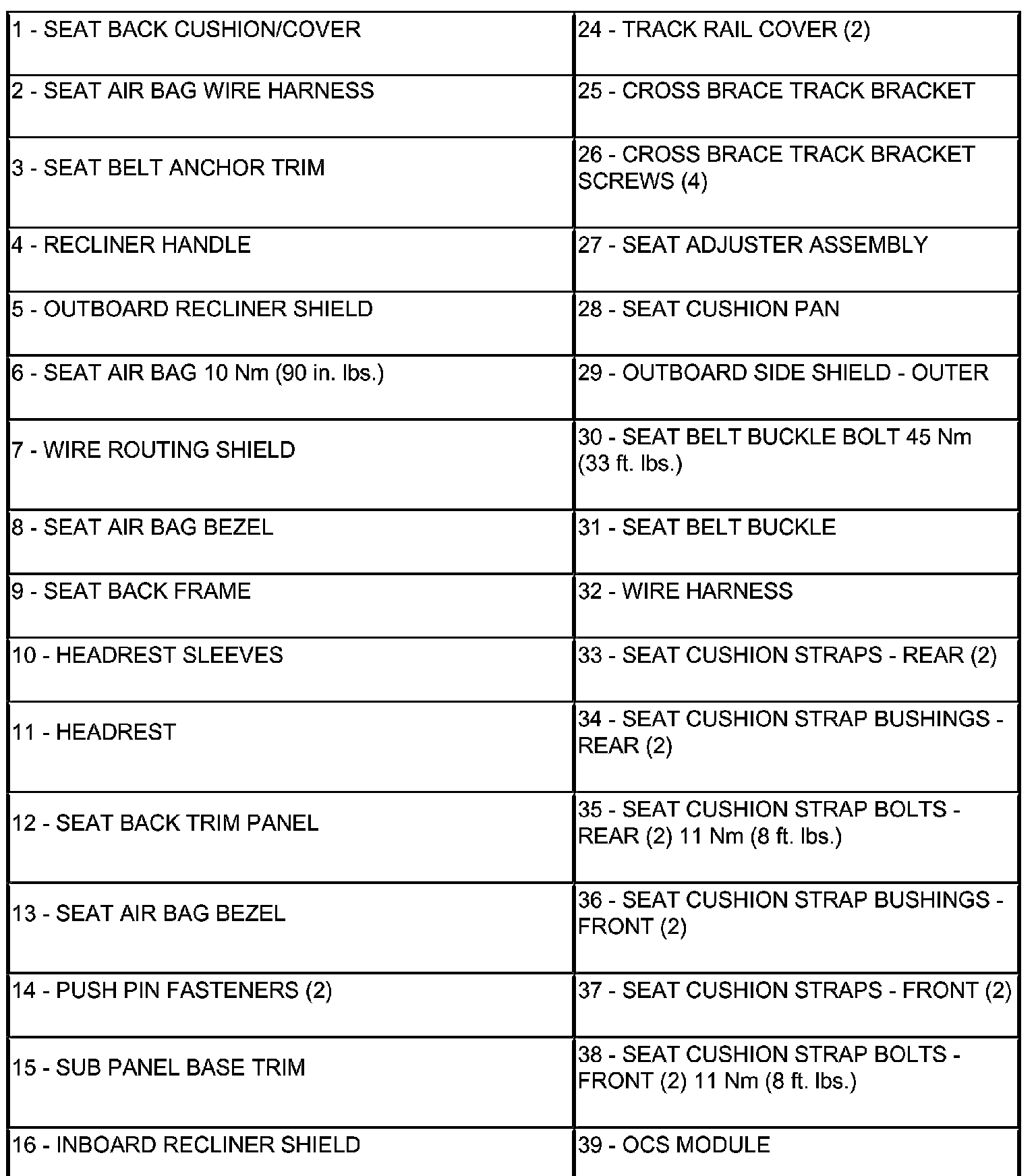

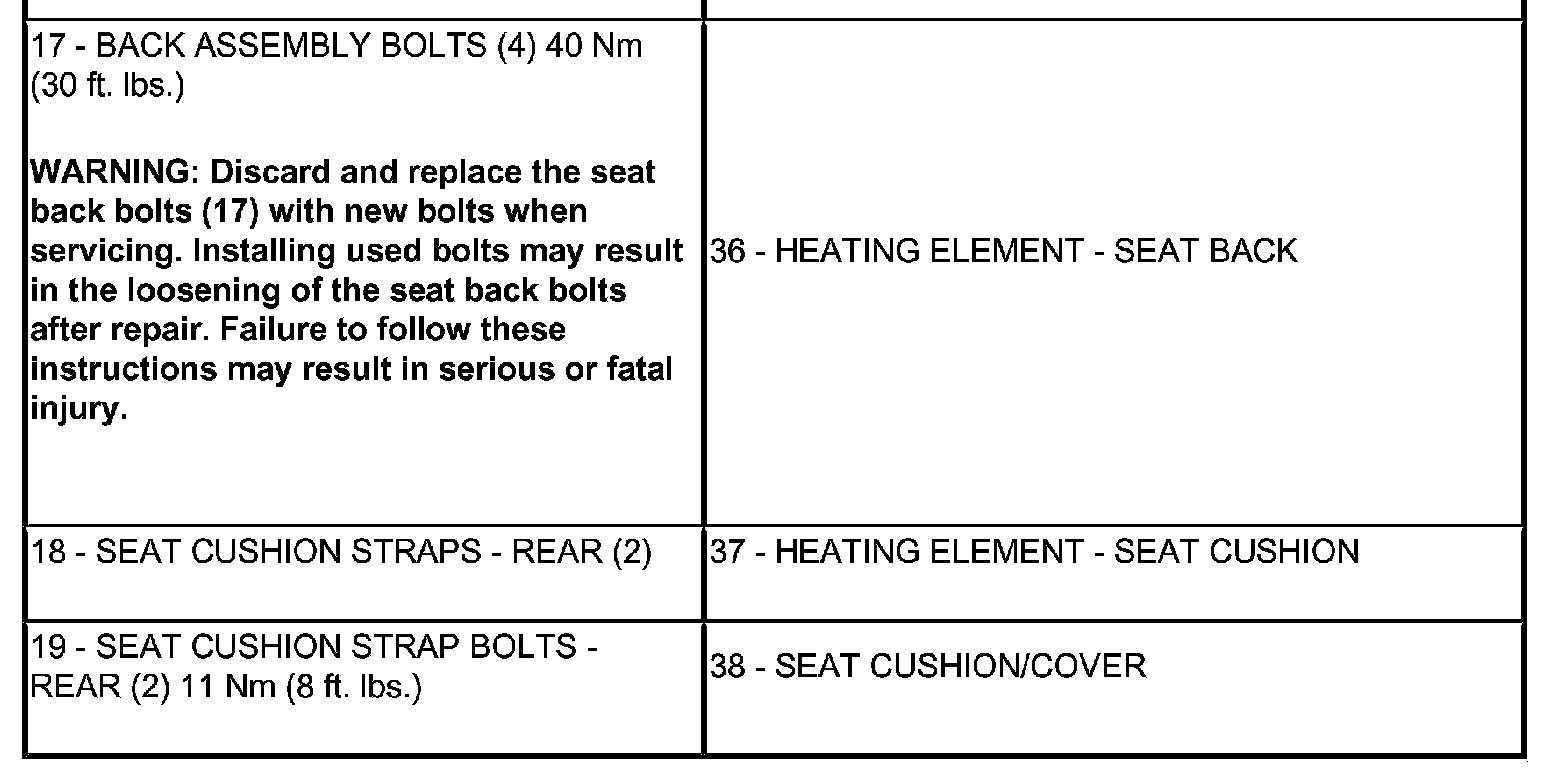

4-WAY DRIVER W/AIR BAG
