Rear Door Trim Panel

REMOVAL

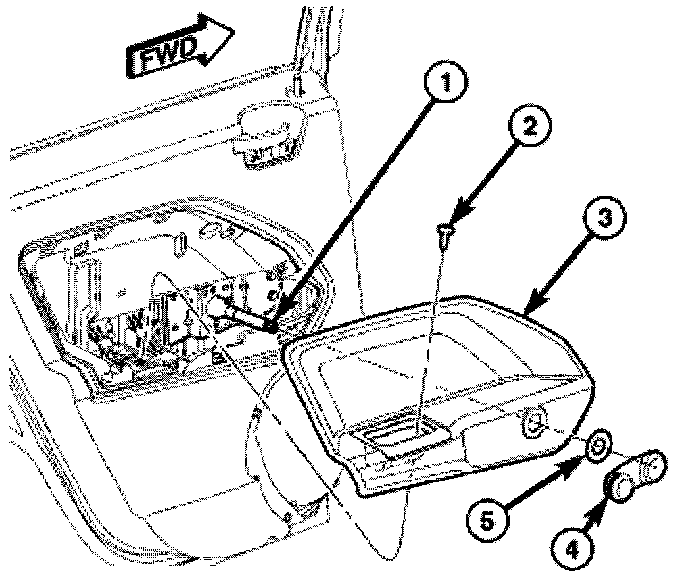

1. Remove screw (1) from pull cup.






2. If equipped, remove window crank (4) and washer (5) from bolster (3).
3. Using trim stick C-4755, unsnap bolster from door panel.
4. If equipped, disconnect wire connector from window switch.

INSTALLATION

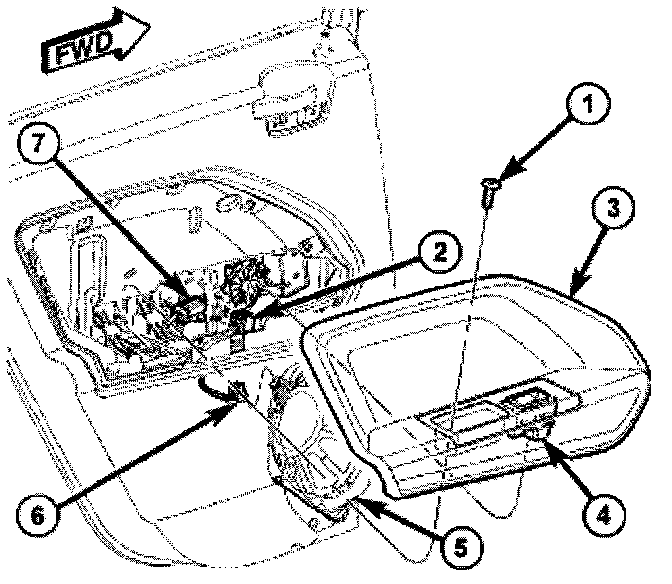

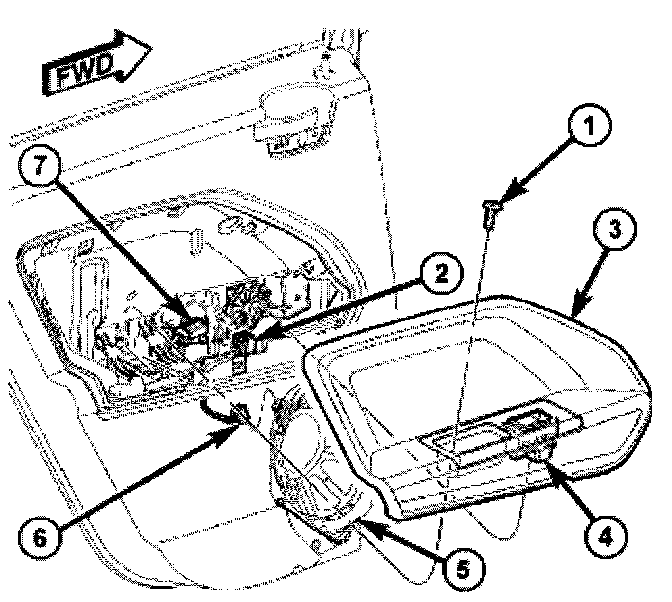

1. Connect wire harness (7) to window switch connector (4).
2. Align bolster (3) with door and hand tap bolster to door ensuring fit.
3. Insert screw (1) into pull cup and tighten.
