Quarter Trim Panel - Removal

REMOVAL

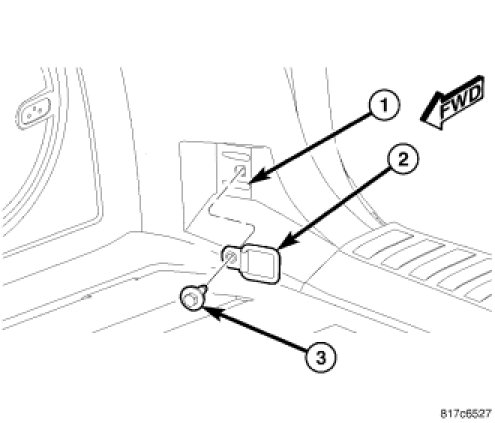

1. Remove the rear quarter trim cargo loop (2) retaining screw.






NOTE: If removing the right side lower quarter trim panel, remove the sub woofer (if equipped).

2. Remove cargo floor.

3. Remove liftgate scuff plate.

4. Remove B-pillar lower trim.

5. Remove the door sill scuff plate.

6. Remove the upper C-pillar trim.

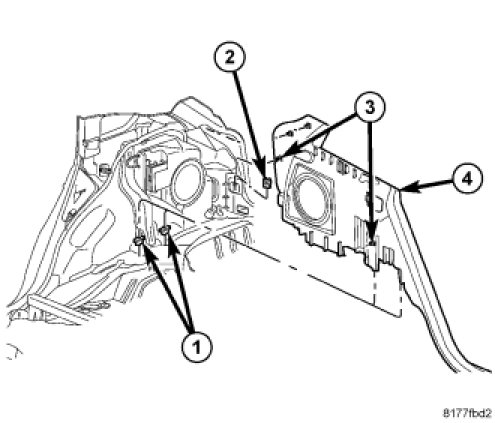

7. Remove the rear quarter panel trim (4).
