A-Pillar Trim Panel-Removal






REMOVAL

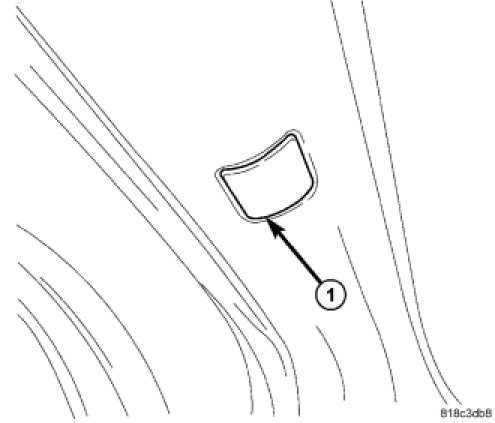

1. Using special tool C-4755, remove plug (1) from A-pillar..

2. Remove screw.

3. Remove A-pillar trim.
