W/Out Speaker

INSTALLATION

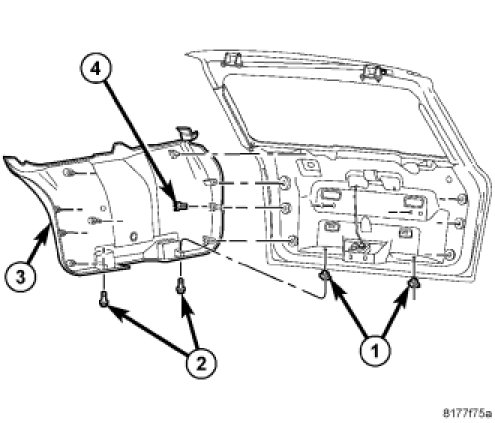

1. Align lower liftgate trim tabs (4) with liftgate holes.

2. Hand tap liftgate panel ensuring liftgate tabs are properly seated.

3. Install liftgate screws (2) into liftgate nuts (1).

4. Install upper side molding.

5. Install upper liftgate molding.
