W/ Speaker

INSTALLATION

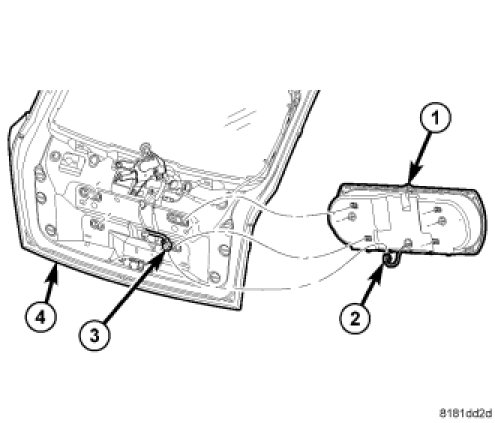

1. Connect speaker connector to wire harness.

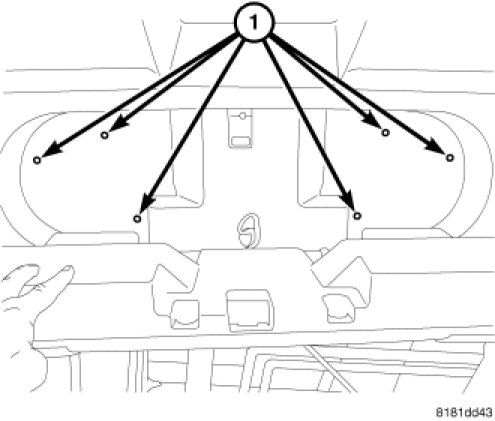

2. Fasten speaker to liftgate.

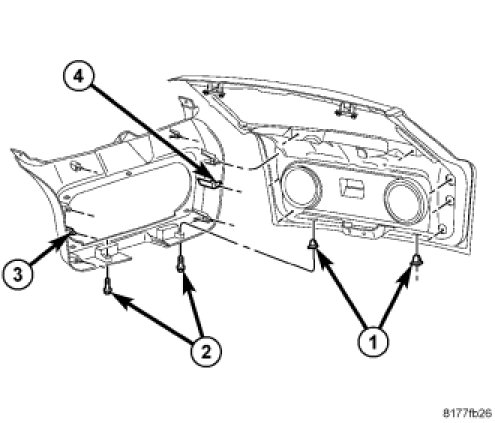

3. Align trim panel to liftgate holes and install trim panel fasteners.
