Removal

REMOVAL




1. Remove pull-cup screw (1).





2. Remove window crank (1) from spindle if equipped.

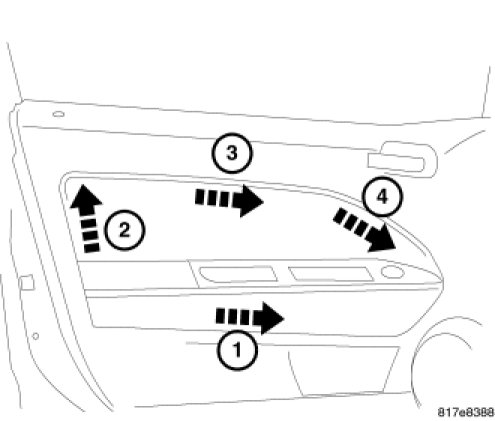

3. Using trim stick C-4755, start at the lower corner and pull in the direction of the arrows. Bolster should unsnap.





4. Remove sock seal (1) and (3) that wraps around switch bezel and wire harness. Disconnect wire connectors (2).

5. Remove switch bezel from bolster.





6. Remove bolster by unsnapping plastic tethers (1) from bolster back side of surface.
