Installation

INSTALLATION

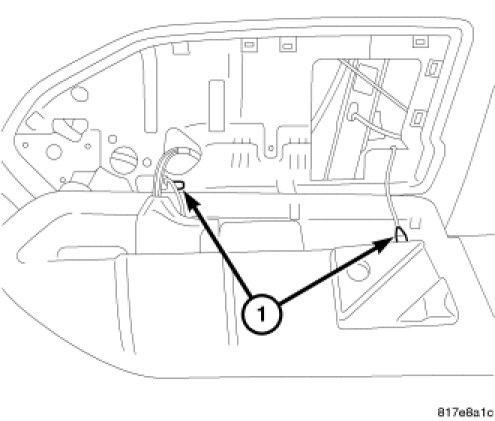

1. Connect bolster to door module tethers (1).

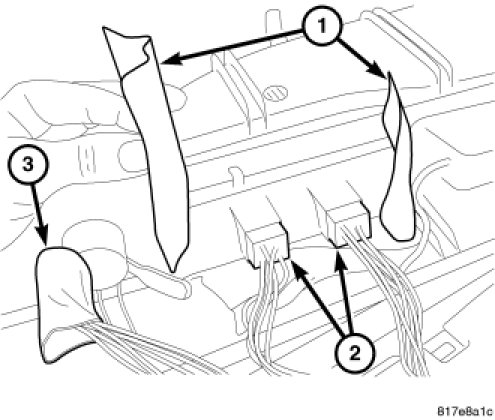

2. Connect wire connectors (2) and close sock seal (1).





3. Replace window crank (1) to spindle.

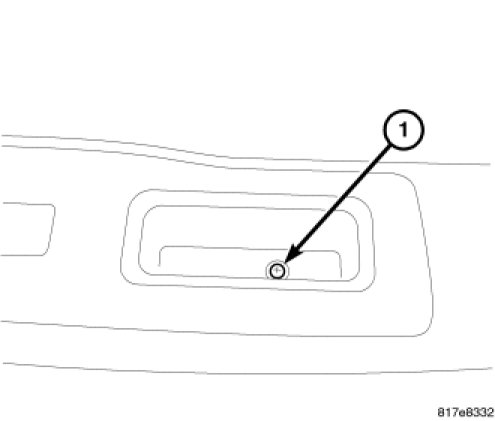

4. Replace pull cup screw.
