Headliner - Installation

INSTALLATION
1. Before headliner installation, install courtesy lamp, cargo lamp, and Universal transmitter module to headliner.

2. With the help of an assistant, Install headliner through windshield opening.

3. Connect rear cargo lamp connector.

4. Install headliner push pins located at rear of headliner.

5. Connect front dome lamp connector.

6. If equipped, connect home link module connector.

7. Connect front rear view mirror hardware.

8. Install rear view mirror.

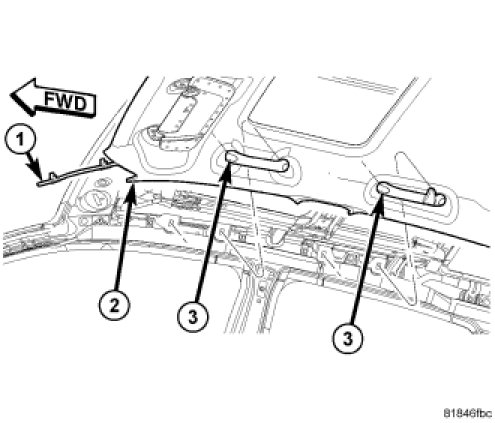

9. Install grab handles (3).

10. Connect rear washer hose.

11. Install sunvisor retainers.

12. Install sun visors.

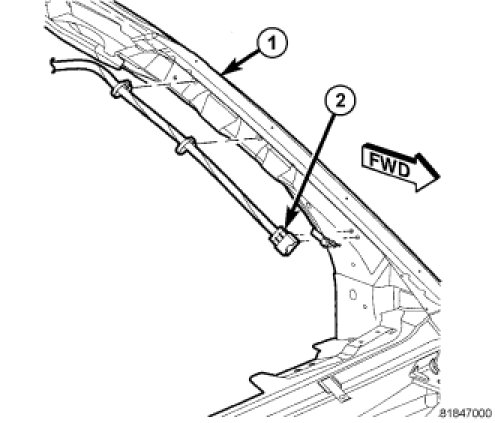

13. Connect A-pillar wire connector.

14. Install A-pillar trim.

15. Install scuff plate.

16. Install B-pillar lower trim.

17. Install B-pillar upper trim.

18. Install cargo load floor.

19. Install rear quarter trim.

20. Install C-pillar trim.

21. Install rear seat striker bezel.

22. Install seat belt turning loops.

23. Install rear cargo scuff plate.
