Installation

INSTALLATION

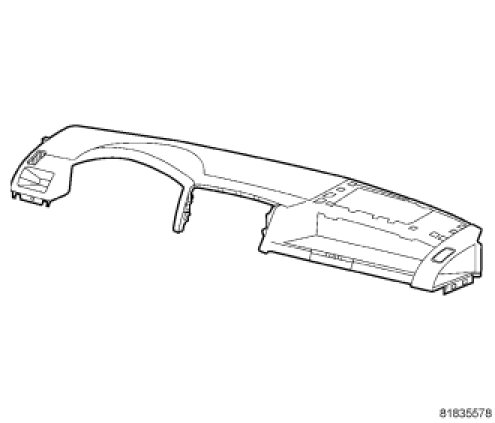

1. Install upper trim panel over structure.

2. Install five screw attachments along forward edge under top cover, screw attachments under each end cap, two screw attachments under center bezel, two clip attachments in the upper cooler bin, one screw attachment under the steering column cover, one clip attachment on the passenger side near outboard outlet, and two clips in the cluster area.

3. Install center bezel.

4. Install manual or automatic shifter bezel.

5. Install steering column shrouds.

6. Install column cover.

7. Install right and left end caps.

8. Install instrument panel top cover.
