Instrument Panel Cover - Installation






INSTALLATION

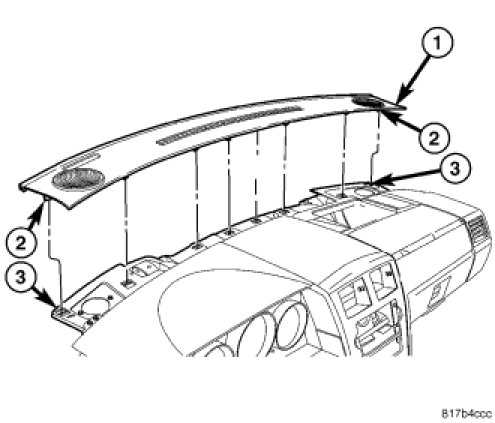

1. Place instrument panel cover (1) over instrument panel aligning instrument panel cover clips over instrument panel inner.

2. Tap on clip locations ensuring instrument panel clips seat.

3. Install A - Pillar trim.
