Instrument Panel

INSTALLATION

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: Left hand drive shown. Right hand drive similar.

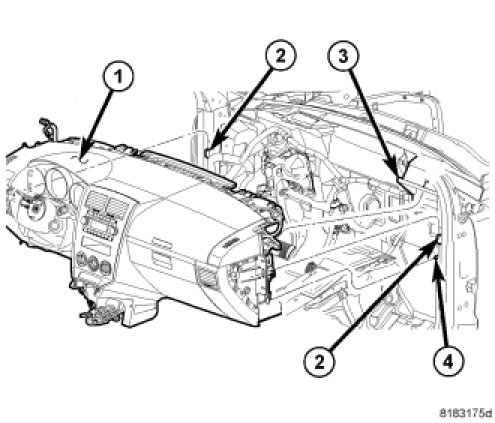

1. With the help of an assistant, load instrument panel into vehicle inserting stud (2) into dash and ensuring instrument panel hangs on reinforcement (2).

2. Install condensation drain tube into floor.

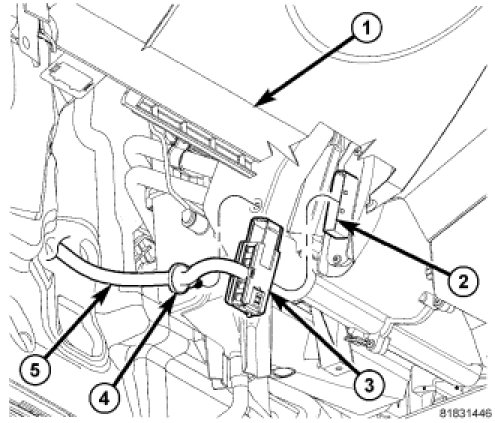

3. Connect HVAC wire harness (2).

4. Install 11 instrument panel to cowl panel fasteners. Tighten to 21 Nm (15 ft. lbs.).

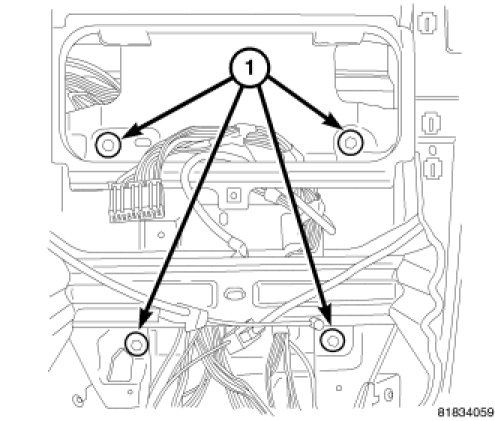

5. Install four fasteners (1) behind center bezel and one behind glove box.

6. Install left and right floor ducts.

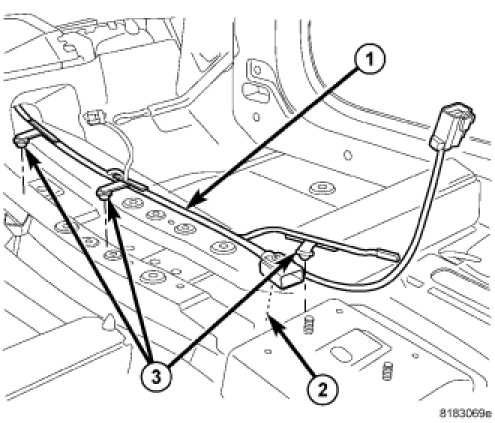

7. Connect instrument panel center console wiring harness.

8. Install left and right door scuff plate.

9. Install lower B - Pillar trim panels.

10. Install B - Pillar trim panels.

11. Install Center console.

12. Install left and right seats.

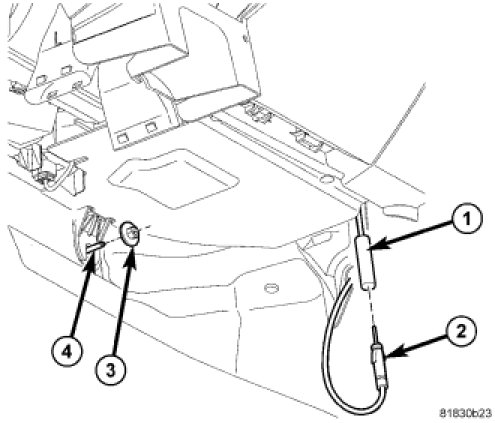

13. Connect radio harness (1) to antenna (2).

14. Install right cowl panel.

15. Install glove box.

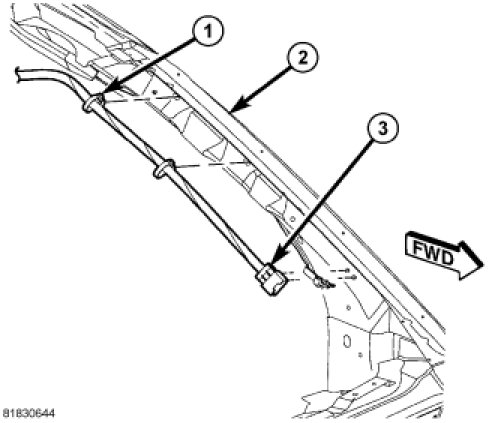

16. Connect A-Pillar (2) wiring harness (3).

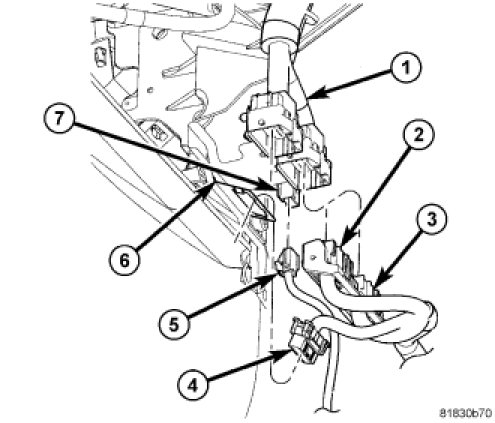

17. Connect instrument panel wiring harness (1) to (2) and (3), (7), and (5).

18. Install left cowl panel.

19. Install Top Panel.

20. Install left and right A - Pillar trim.

21. Install shifter assembly.

22. Install center bezel.

23. Install center console shifter housing.

24. Install manual or automatic shifter bezel.

25. Connect steering column wire harness.

26. Connect steering column.

27. Install steering cover shrouds.

28. If equipped, install left and right airbag covers.

29. Install left and right end caps.

30. Connect the negative battery cable.
