Base Panel

INSTALLATION

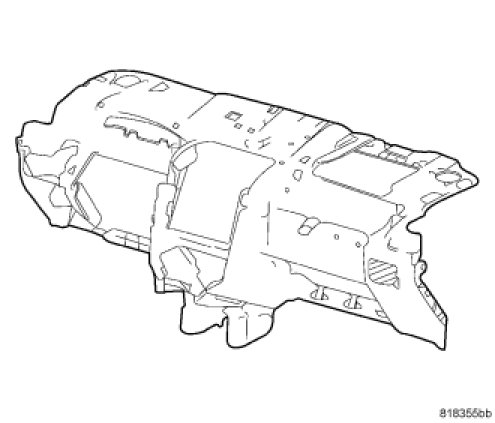

1. Place instrument panel base structure over base panel.

2. Install 25 fasteners.

3. If equipped, install knee blocker.

4. Install glove box door.

5. Install shifter bracket.

6. Install radio.

7. Install upper panel.

8. Install steering column shrouds.

9. Install steering cover.

10. Install center bezel.

11. Install shifter housing.

12. Install shifter bezel.

13. Install right and left end caps.

14. Install top cover.
