Installation

INSTALLATION

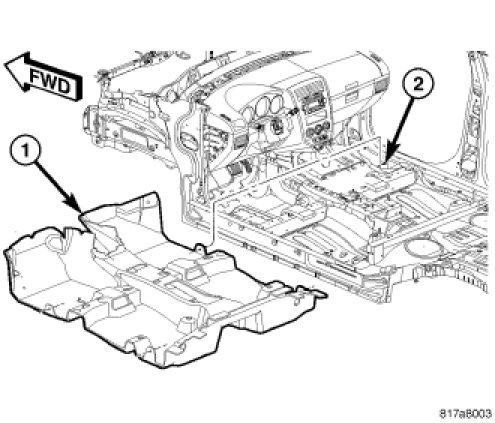

1. Install carpet into vehicle ensuring carpet (1) is aligned with tabs (2).

2. Install rear quarter panel trim.

3. Install liftgate scuff plate.

4. Install cargo load floor.

5. Install side cowl trim panel.

6. Install B-pillar lower trim.

7. Install door sill scuff plate.

8. Install center console.

9. Install center console shifter housing.

10. Install rear seat cushion.

11. Install rear seat back.

12. Install front seats.
