Installation

INSTALLATION

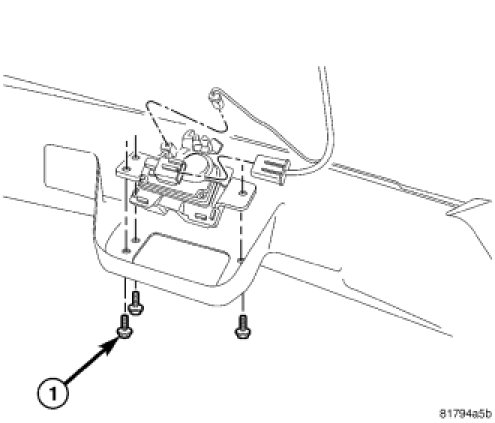

1. Connect wire connectors.

2. Install latch assembly into liftgate pocket.

3. Install three fasteners (1).

4. Tighten fasteners to 8 Nm (6 ft. lbs.).

5. Install cable fastener to liftgate inner while working the cable upward.

6. Guide cable upward through opening and tuck into the outer handle hole.
