Liftgate Upper Side Molding
>>
Removal
Removal

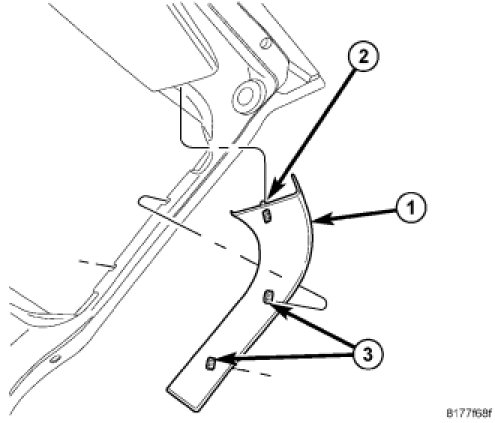

REMOVAL
1.
Using trim stick C4755 or equivalent, pry up at each clip location.
2.
Remove upper side trim.
