Liftgate Window Glass: Service and Repair

Liftgate

Removal






1. Open liftgate.
2. Disconnect washer hose.

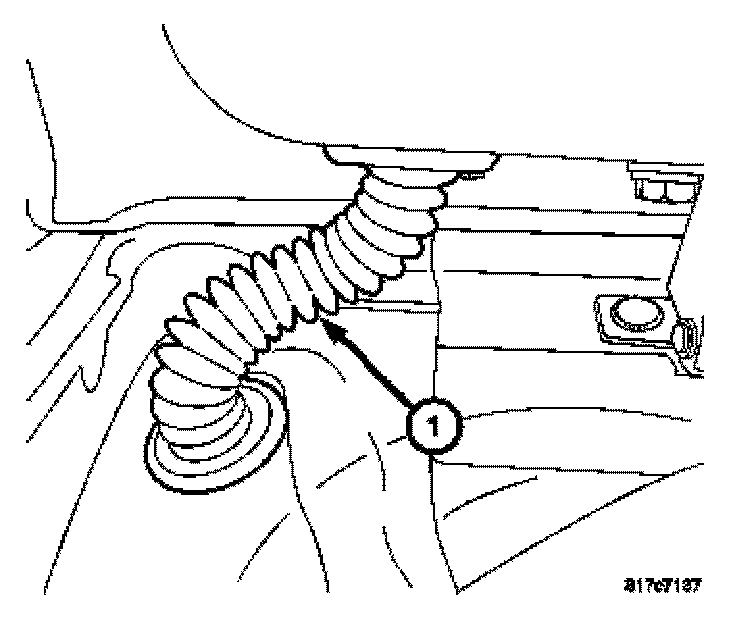

3. Disconnect liftgate harness (1).
4. Disconnect cable from handle.
5. With the help from an assistant, support liftgate and disconnect Prop rods.

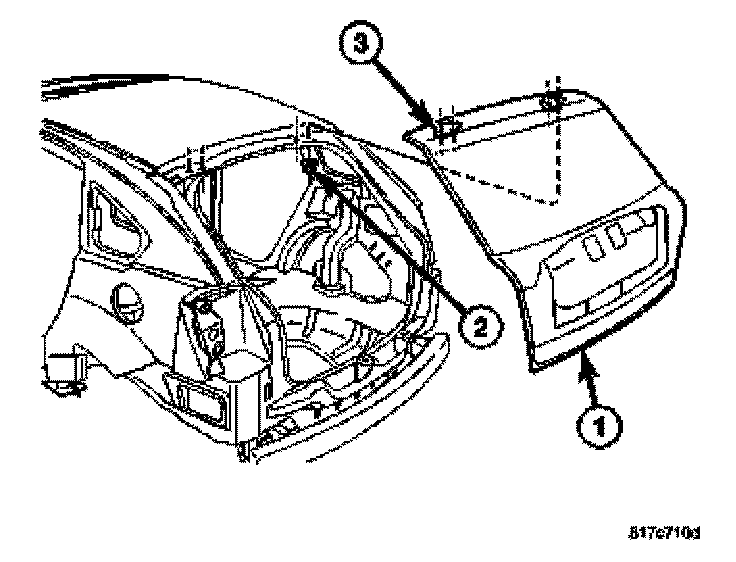

6. Remove fasteners (2) attaching liftgate (1) to liftgate hinge (3).

Installation






1. With the help of an assistant, place liftgate (1) onto liftgate hinges (3).
2. Torque nuts (2) to 15 Nm (11 ft. lbs.).
3. Install prop. rods.






4. Install liftgate harness (1).
5. Install washer hose.
