Installation

INSTALLATION

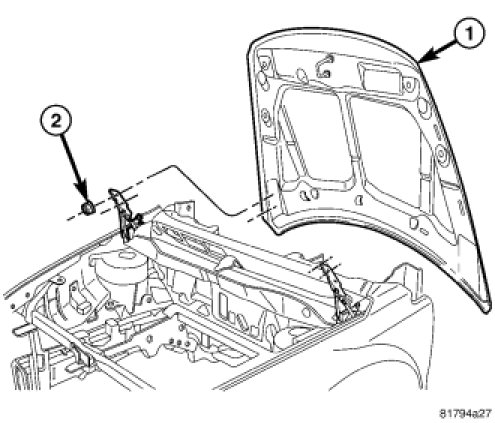

1. With the help of an assistant, align hood with hinge holes.

2. Align nuts with scribed marks and install nuts on studs.

3. Tighten nuts to 20 Nm ( 15 ft. lbs.).

4. Connect wire connector if necessary.
