Installation

INSTALLATION

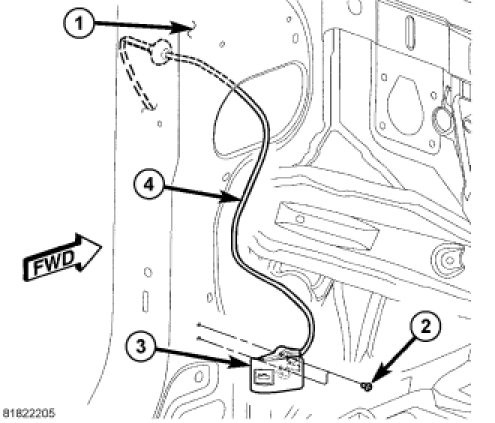

1. Install fasteners (2).

2. Install cable into hood release lever (3), and route cable (4) through grommet.

3. Remove splash shield.





4. Route cable along underneath splash shield and route toward radiator support.





5. Insert cable (2) into latch (3) and route front of cable (1) into access hole.
