Installation






INSTALLATION

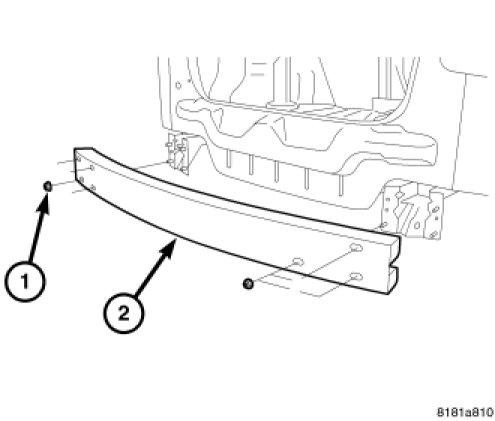

1. Place bumper reinforcement (2) up to frame locations.

2. Install seven nuts (1) and tighten to 23 Nm (204 in. lbs.)

3. Install fascia.
