Installation

INSTALLATION




1. Install fasteners (2) and torque to 23 Nm (204 in. lbs.).





2. Connect wire connector (2) and install horn (1).

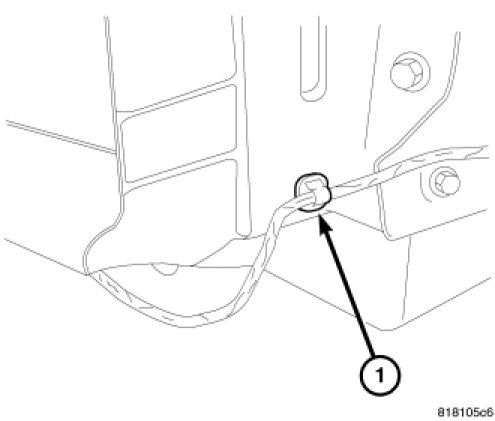

3. Install wiring harness push pin.

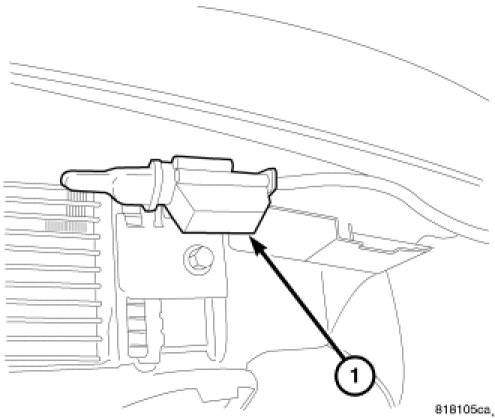

4. Install wire connector (1) to bumper reinforcement.

5. Install front fascia.
