Installation






INSTALLATION




1. Connect wire connector.

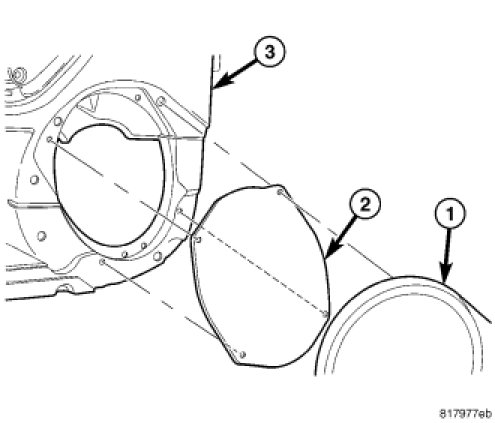

2. Install speaker (2) into panel (3) and install two screws into door panel.

3. Install two screws into trim panel (1).

4. Install speaker grille (1) onto trim panel (3).
