Home >> Dodge >> 2007 >> Caliber L4-2.0L VIN B >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Service and Repair >> Removal

Removal






REMOVAL




1. Disconnect and isolate the battery negative cable.

2. Remove the retaining fasteners.

3. Disconnect the wire harness connector.

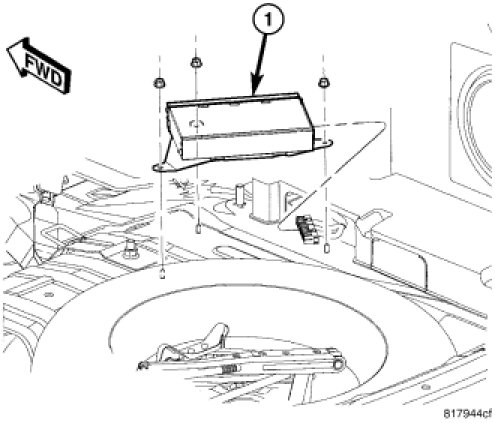

4. Remove the amplifier (1).
