U1418

U1418-IMPLAUSIBLE RIGHT WHEEL DISTANCE SIGNAL RECEIVED





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition on.

- Set Condition:

The PCM gets an implausible signal over the CAN C circuit from the ABS Module. The circuit is continuously monitored.






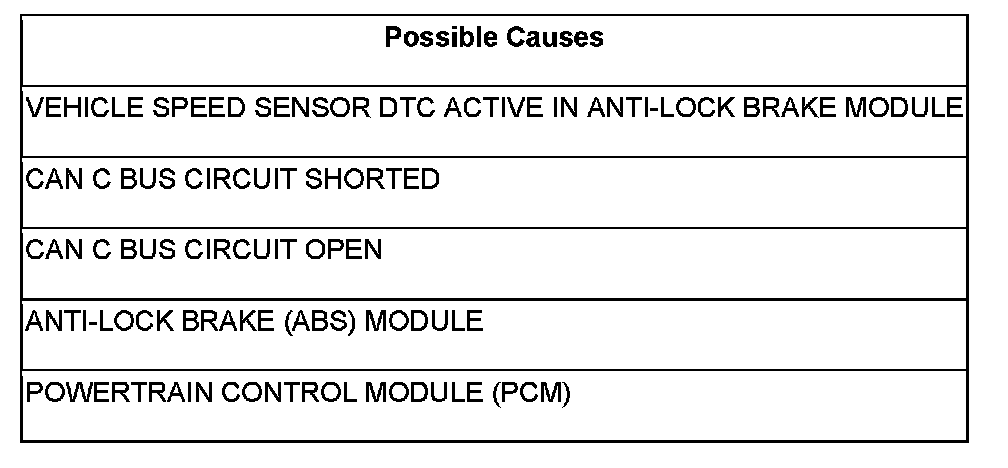

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Theory of Operation

The ABS Module sends an implausible distance signal over the CAN C Bus circuit to the PCM.

Diagnostic Test

1. ACTIVE DTC

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

Ignition on, engine not running.

With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

2. ABS MODULE IS ACTIVE ON THE CAN C BUS

Using the Network Review Screen on the scan tool, verify that the ABS Module is active on the bus.

Is the ABS Module active on the bus?

Yes

- Go To 3

No

- Refer to Computers and Control Systems / Testing and Inspection for No Response diagnostic procedures.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3. DTCS STORED OR ACTIVE IN THE ABS MODULE

With the scan tool, select View DTCs in the ABS Module.

Are any DTCs active or stored in the ABS Module?

Yes

- Refer to Antilock Brake System testing.
- Perform ABS VERIFICATION TEST - VER 1. ABS Verification Test

No

- Go to 4

4. ACTIVE DTCS IN THE TIPM

With the scan tool, select ECU View and select the TIPM.

With the scan tool, select View DTCs in the TIPM.

Are any ABS related DTCs active or stored in the TIPM?

Yes

- Replace the ABS Module
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace and program the Powertrain Control Module.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
