U1411

U1411-IMPLAUSIBLE FUEL VOLUME SIGNAL RECEIVED





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition on.

- Set Condition:

The fuel volume message the PCM is receiving is implausible. The circuit is continuously monitored.






Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

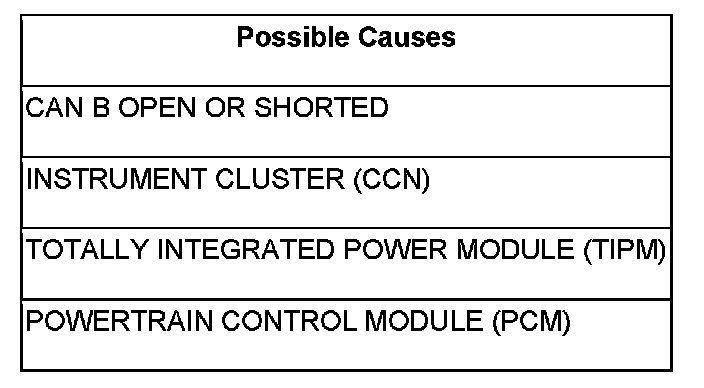

Theory of Operation

The Front Control Module isn't receiving a fuel volume signal over CAN B from the Cluster Module. The TIPM has to send the PCM a fuel volume signal over CAN C. The signal the TIPM sends over CAN C is implausible.

Diagnostic Test

1. ACTIVE DTC

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

Ignition on, engine not running.

With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

2. CAN B BUS HARDWARE DTCS ALSO ACTIVE

With a scan tool, select View DTCs in the TIPM.

Are any CAN B Hardware related DTCs active?

Yes

- Refer to Communications and perform the appropriate diagnostic procedure.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
