Electronically Controlled Clutch (ECC)

U0100-LOST COMMUNICATION WITH ECM/PCM (TIPM)

For a complete wiring diagram Refer to Diagrams/Electrical. Electrical Diagrams


- When Monitored:

- With the ignition on
- Battery voltage between 10 and 16 volts
- IOD fuse installed
- TIPM is configured correctly

- Set Condition:

Bus messages not received from the ECM/PCM for approximately 2 to 5 seconds.

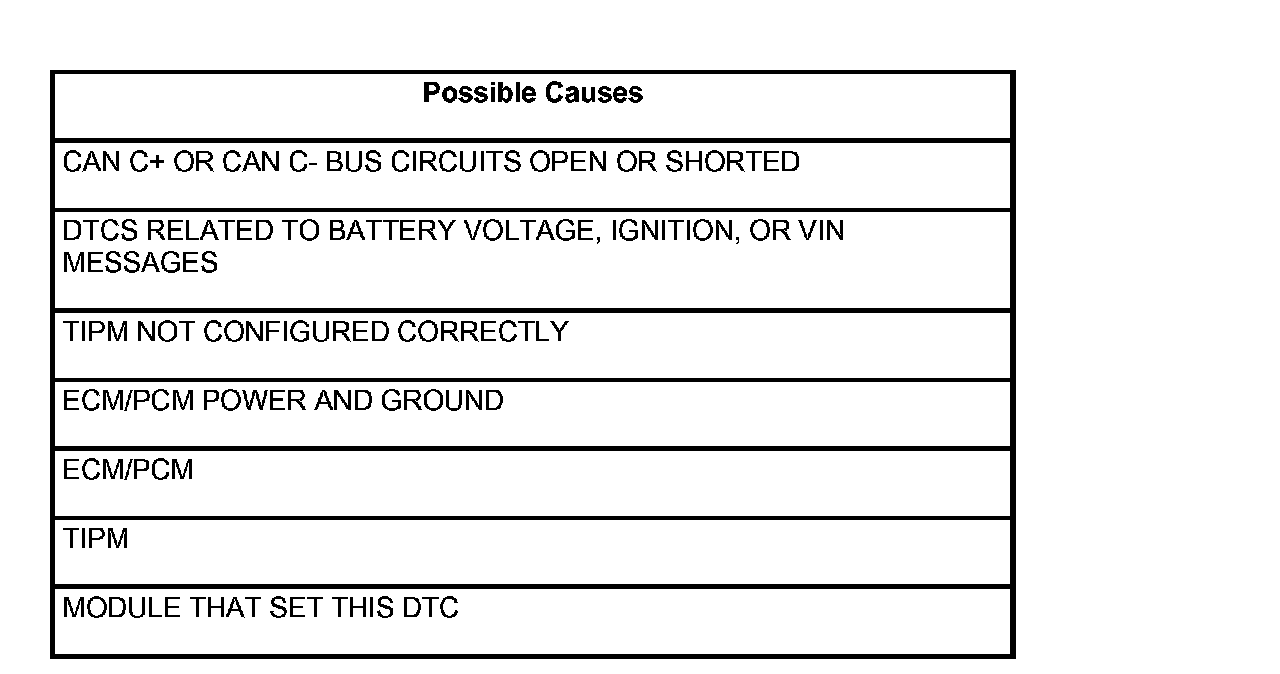

Refer to Communications for diagnostic procedures and for further possible causes.


For a complete wiring diagram Refer to Diagrams/Electrical. Electrical Diagrams
