P2107

P2107-ELECTRONIC THROTTLE CONTROL MODULE PROCESSOR

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

Internal PCM failure. Module will attempt to reset, so you will be able to hear the throttle relearning. If the condition is continuous, the vehicle may not be drivable. One trip fault. ETC light is flashing.






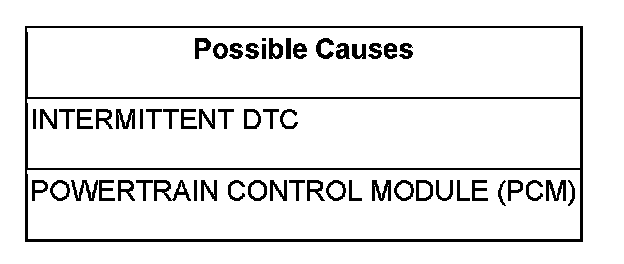

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
.

Diagnostic Test

1. DTC IS ACTIVE

NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.

NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause this DTC to set.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

Turn the ignition on.

With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).

Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Powertrain Control Module (PCM).

Start the engine and allow it to reach operating temperature.

Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.

Test drive the vehicle for 10 miles on a flat road surface.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC

2. POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
